Palmer
Pedalbay® 60 PB

Pedalboard incl.WTPB60 Powerbar

slide 1 of 14
slide 1 to 3 of 14

RRP 338,02 € / piece

Item No.:
PPEDALBAY60PB
EAN:
4049521531644
Guarantee:
60 Months
Unit:
piece

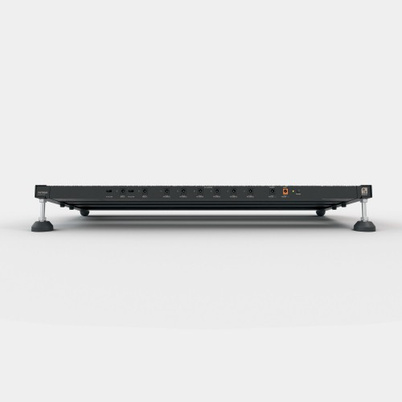

The PEDALBAY® 60 PB set combines the Palmer PEDALBAY® 60 and the Palmer WT PB 60 power supply with 8 single-isolated outputs. Due to the patented integration, the power supply can be exchanged and fixed with the rear rail of the PEDALBAY® 60. A separate transport for power supply and PEDALBAY® is no longer necessary.

Pedalbay® 60 PB
Pedalbay® 60 PB
Pedalboard incl.WTPB60 Powerbar

RRP 338,02 € / piece

Specifications
Specifications
Videos
Stories
Downloads/links

Specifications

General
Product type
Pedalboards
Type
Pedalboard with power supply unit
Weight
4,48 kg
Items in this set
Palmer PEDALBAY® 60 Lightweight Variable Pedalboard with Protective Softcase, 60 cm
View items
Product type
Pedalboards
Material
Aluminium
Surface
Powder-coated
Width of the Cross Bars
50 mm
Features
Adjustable cross bars, Height-adjustable
Weight Pedalbay
1.51 kg
Width
605 mm
Depth
305 mm
Height
70 - 85 mm
Weight
4,355 kg
Accessories (included)
2x black elastic bands, allen key, approx. 3m hook tape, Soft carrying case with shoulder strap
Palmer WT PB 60 Power Supply with 8 Outputs for PEDALBAY® 60
View items
Product type
Power Supplies
Mains connector
Plug-in power supply
Input voltage
100 - 250 V
Outputs
8
Output connectors
2.1 x 5.5 mm
Material
Aluminium
Surface
Anodized, Powder-coated
Output voltage
12 V, 18 V, 9 V
Max. output current
2 A
Isolated outputs
Yes
Polarity
Center negative
Cord length
150 + 150 cm
Indicators
Fault, Power
Controls
Output voltage selector
Width
600 mm
Depth
50 mm
Height
24 mm
Weight
0,7 kg
Accessories (included)
5x DC cable straight to angled 16cm long, 9x DC cable straight to angled 60cm long, hook-and-loop tape, M6 Nuts, M8 Nuts, Power supply
