Defender

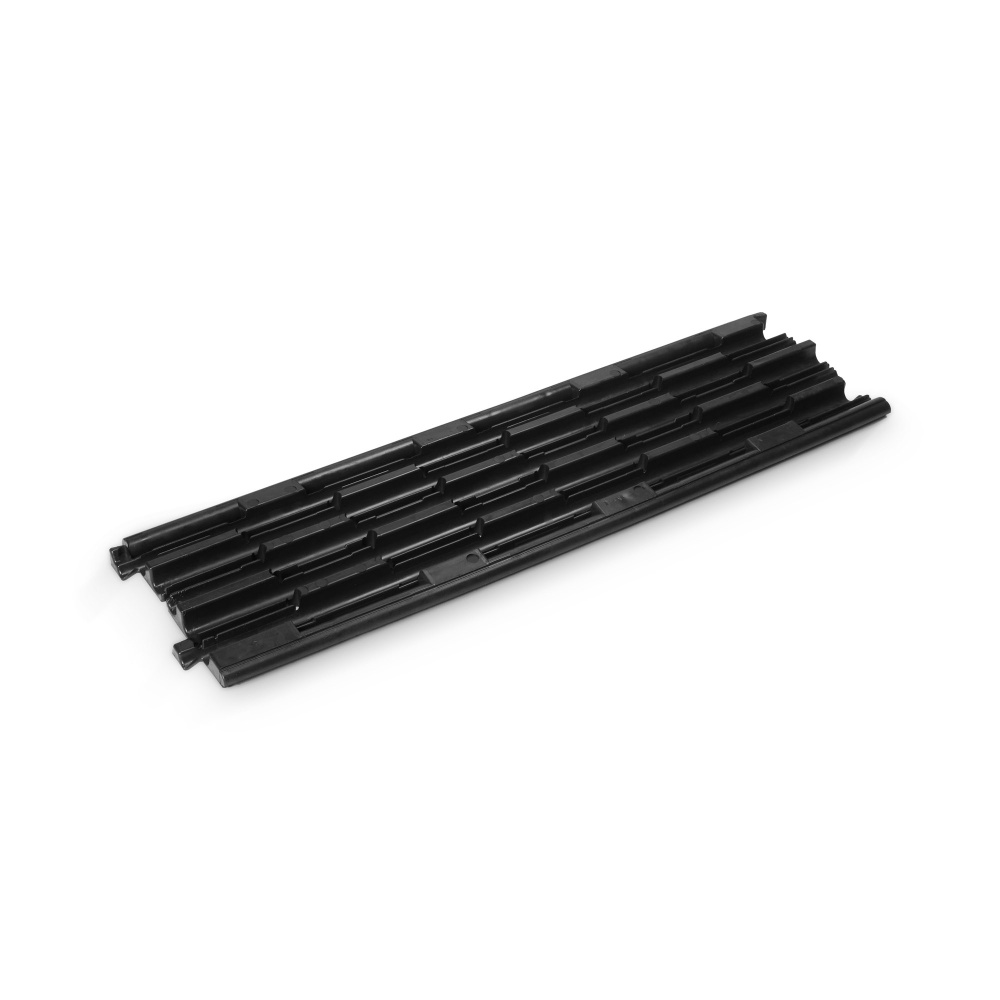

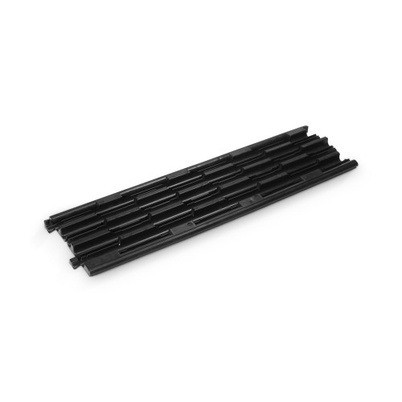

COMPACT BASE

Cable protector 7 channels | Base | black | light duty | height 3.7cm

slide 1 of 5
slide 1 to 3 of 5

RRP 85,54 € / piece

Item No.:
85103
EAN:
4049521015458
Guarantee:
60 Months
Unit:
piece
Series:
Versions:
  • Fire protection class B2 (DIN 4102)
  • Resistant to oil, acid, solvents and petrol
  • Dimensions 80 x 43 x 4 cm
  • Reliable cable and personal protection for indoor and outdoor use
  • Suitable for heavier loads such as forklifts and pallet trucks with lower section
  • Channels with lower section: 5 channels 22 x 21 cm
  • Weight with top section: 5.5 kg
  • Not suitable for road traffic
  • TÜV Süd certified
COMPACT BASE
COMPACT BASE
Cable protector 7 channels | Base | black | light duty |...

RRP 85,54 € / piece

Specifications
Specifications
Description
Downloads/links
Buy from

Specifications

General
Material
TPU (Thermoplastic polyurethane)
Surface structure
Ribbed
Colour
Black
Maximum load (on 20 x 20 cm)
2 t
Chemical resistance
Petrol, Solvents (short-term contact), Oil
Hardness range (±4 Shore A)
88 Shore A
Shape
Round
Cable ducts
Quantity
7
Cable ducts size (W x H)
28 cm x 23 cm / 28 cm x 30 cm
Duct length (effective length)
805 mm
Environmental
Fire protection class (EN 13501-1)
B2
Ambient temperature
-30 - 60 °C
Dimensions & weight
Length
830 mm
Width
232 mm
Height
37 mm
Weight
2 kg

Description

DEFENDER® COMPACT LOWER SECTION

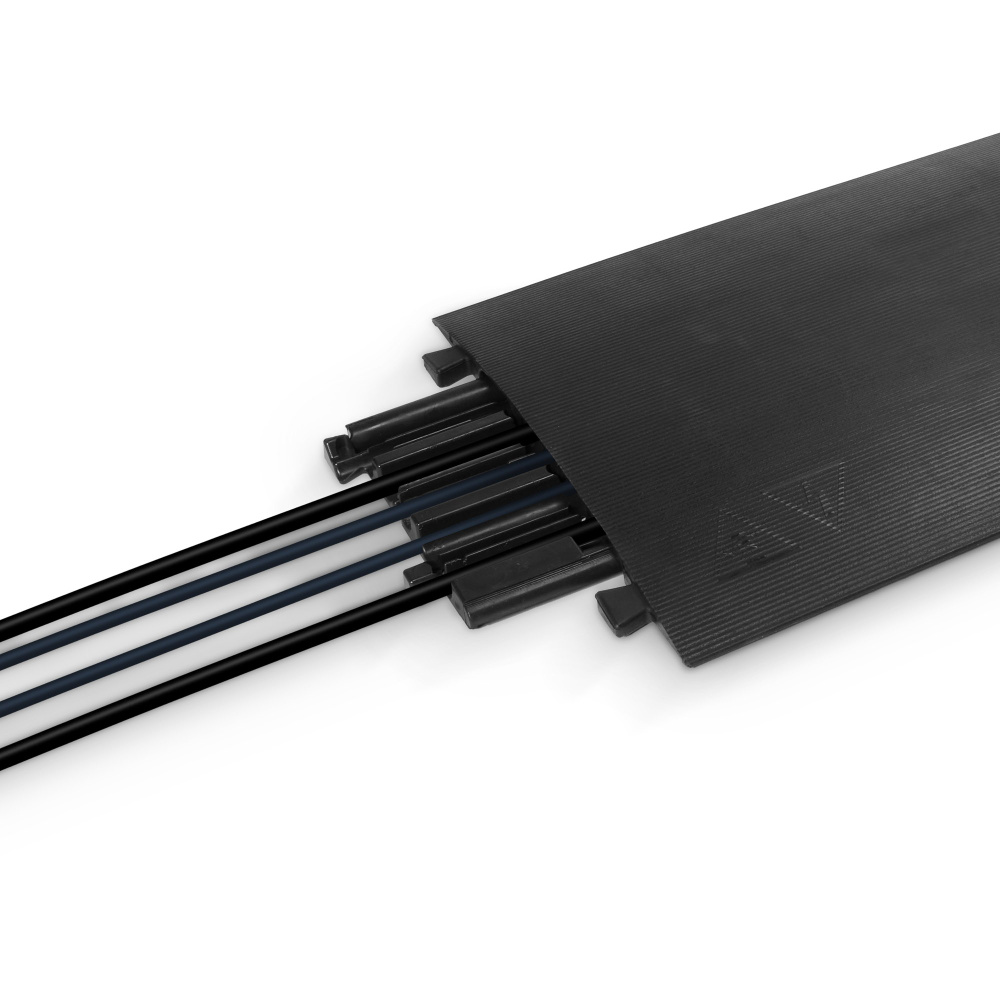

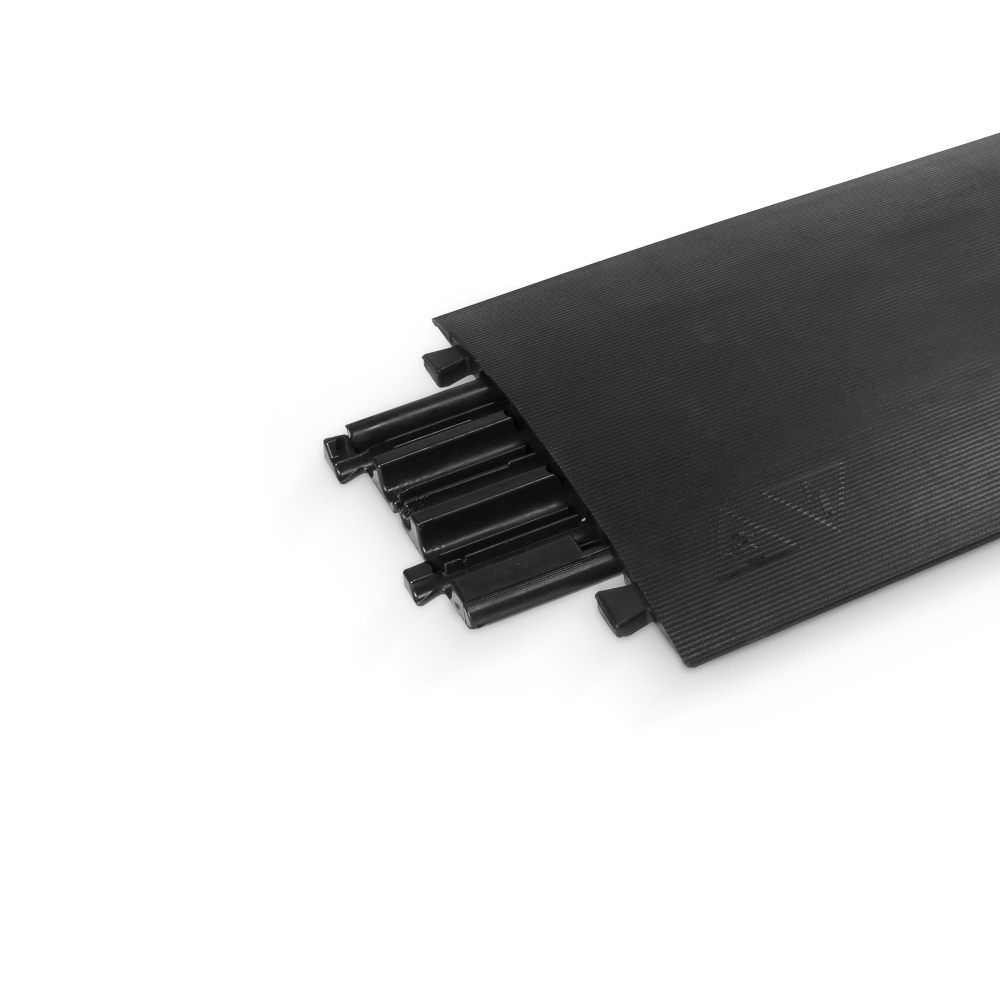

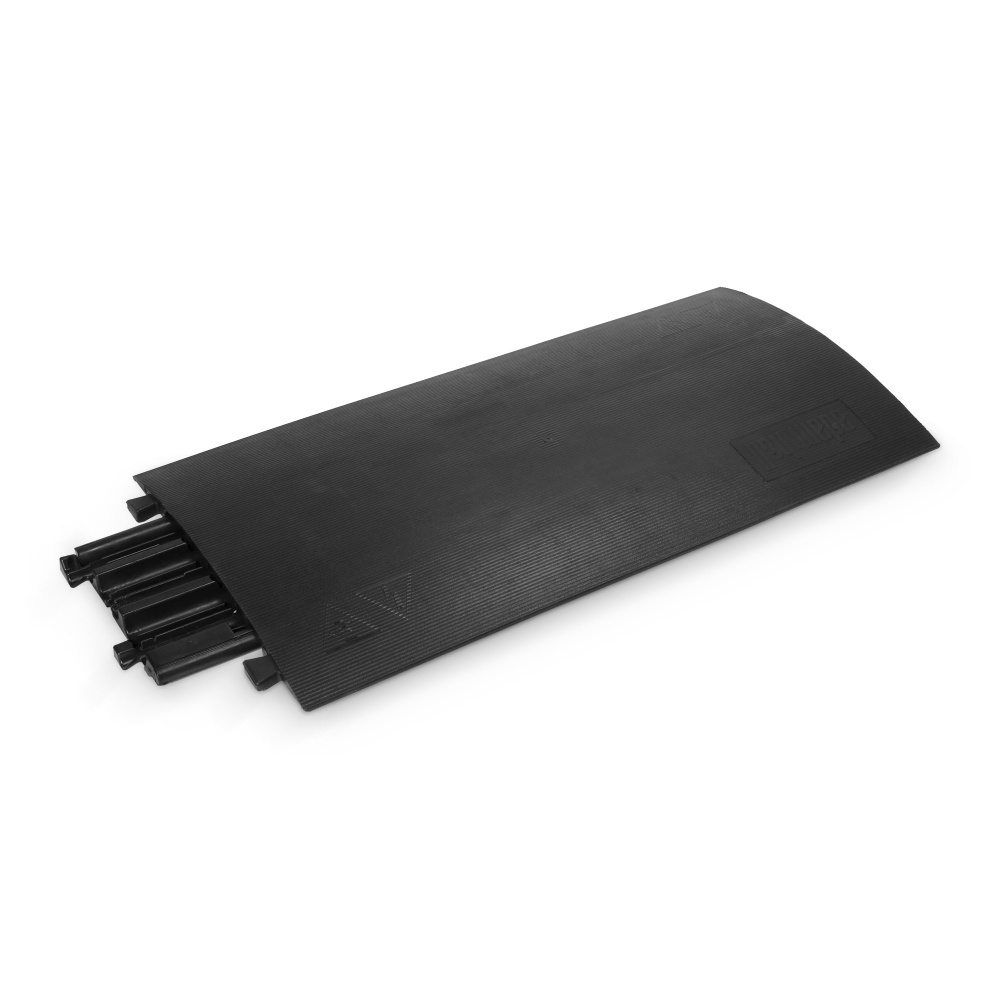

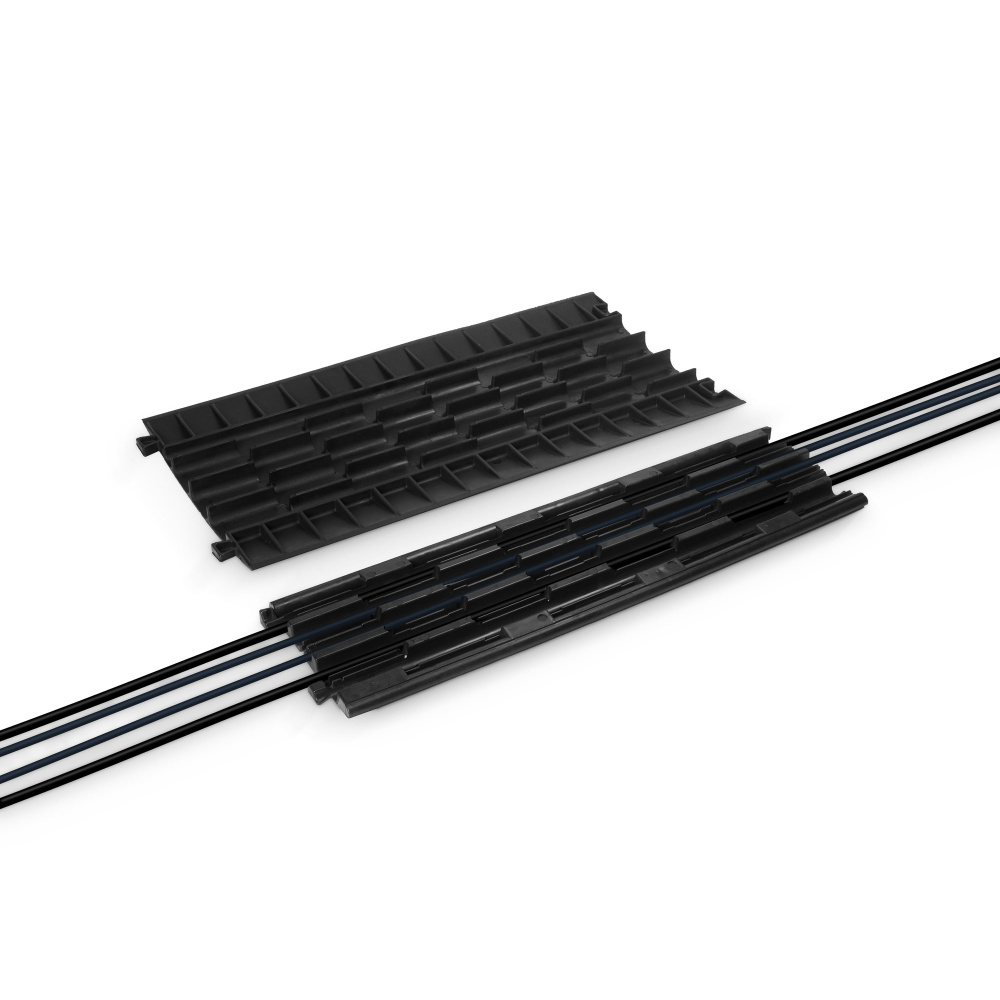

In combination with the optionally available 5-channel lower section, the DEFENDER® COMPACT cable protector is transformed into a very robust cable protector with a high load-bearing capacity that even allows trucks, forklift trucks and other vehicles to drive over it. With its ribbed anti-slip surface and integrated connectors in the bridge and base section, the DEFENDER COMPACT system with base section can also be laid as a stable, continuous line. Areas of application include construction sites, warehouses, shopping centres, trade fairs, exhibitions, carnivals and music events.
