Adam Hall Hardware
172511

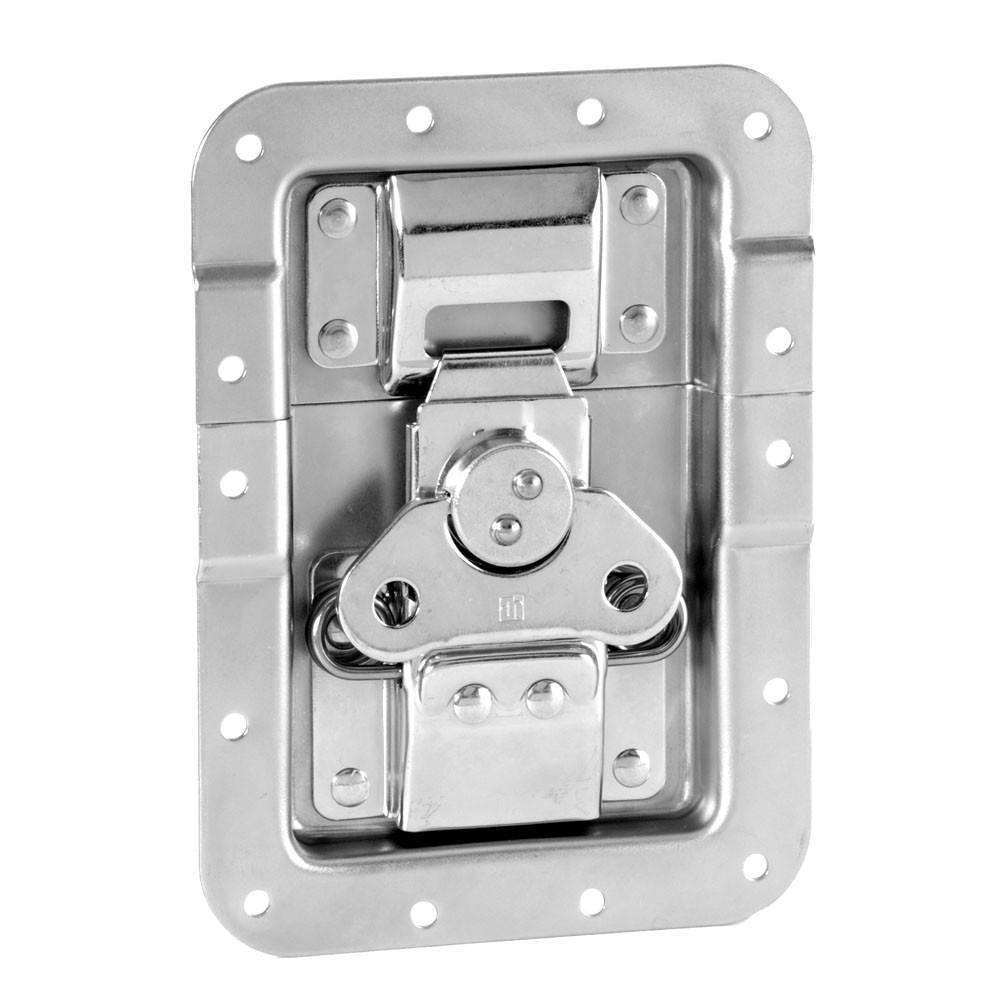

Butterfly Latch V3 large cranked 14 mm deep

172511

RRP 20,42 € / piece

Item No.:
172511
EAN:
4049521003912
Guarantee:
24 Months
Unit:
piece
Series:

Our V3, V4 and V5 Butterflies have a patented ´push-down` mechanism that lifts the hook out of the keeper plate on opening and leads it back into the dish on closing. This offers an ideal handling and minimises risk of injury and damage.

172511
172511
Butterfly Latch V3 large cranked 14 mm deep

RRP 20,42 € / piece

Specifications

Specifications

General
Material
Steel
Coating
Galvanised
Lockable
No
Push-out spring
No
Push Flat feature
Yes
Colour
Silver
Mounting tray
Cranking
Cranked
Size
Large
Dimensions & weight
Diameter of mounting holes
5.1 mm
Width
127 mm
Depth
174 mm
Installation width
98.2 mm
Installation depth
13.9 mm
Weight
0.47 kg

Downloads/links

Technical drawing

Category: Data Sheet

Type: pdf

File size: 156 KB

Tender documents

Category: Tender Specifications

Type: zip

File size: 73 KB

Adam Hall Flightcase Hardware Catalogue

Category: Catalog

Type: pdf

File size: 114 MB

Item images

Category: Product images

Type: zip

File size: -

Name
Category
Type
File size
Technical drawing Data Sheet pdf 156 KB
Tender documents Tender Specifications zip 73 KB
Adam Hall Flightcase Hardware Catalogue Catalog pdf 114 MB
Item images Product images zip -
