Adam Hall Hardware
172572

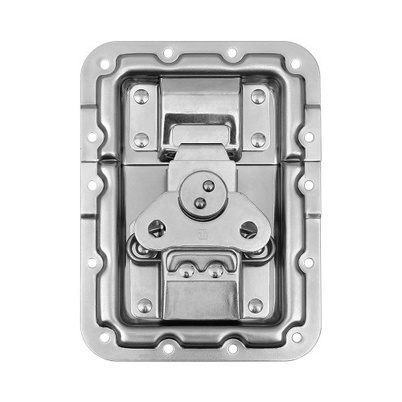

Butterfly Latch V3 large cranked 9 mm deep with Rivet Protection

172572

RRP 20,42 € / piece

Item No.:
172572
EAN:
4049521106248
Guarantee:
24 Months
Unit:
piece
Series:

Our V3, V4 and V5 Butterflies have a patented ´push-down` mechanism that lifts the hook out of the keeper plate on opening and leads it back into the dish on closing. This offers an ideal handling and minimises risk of injury and damage.

172572
172572
Butterfly Latch V3 large cranked 9 mm deep with Rivet Protection

RRP 20,42 € / piece

Specifications

Specifications

General
Product type
Catches
Type
Butterfly Latches
Material
Steel
Surface
galvanized
Mounting hole diameter
5.1 mm
Lockable
No
Dish type
cranked
Dish size
large
Dish depth
9 mm
Rivet protection design
Yes
With push-out spring
No
Push-flat function
Yes
Weight
0,384 kg

Downloads/links

Technical drawing

Category: Data Sheet

Type: pdf

File size: 186 KB

Tender documents

Category: Tender Specifications

Type: zip

File size: 73 KB

Adam Hall Flightcase Hardware Catalogue

Category: Catalog

Type: pdf

File size: 114 MB

Item images

Category: Product images

Type: zip

File size: -

Name
Category
Type
File size
Technical drawing Data Sheet pdf 186 KB
Tender documents Tender Specifications zip 73 KB
Adam Hall Flightcase Hardware Catalogue Catalog pdf 114 MB
Item images Product images zip -
