LD Systems
MEI 1000 G2

In-Ear Monitoring System wireless

slide 1 of 8
slide 1 to 3 of 8

RRP 763,60 SGD / piece

Item No.:
LDMEI1000G2
EAN:
4049521146862
Guarantee:
24 Months
Unit:
piece
Versions:

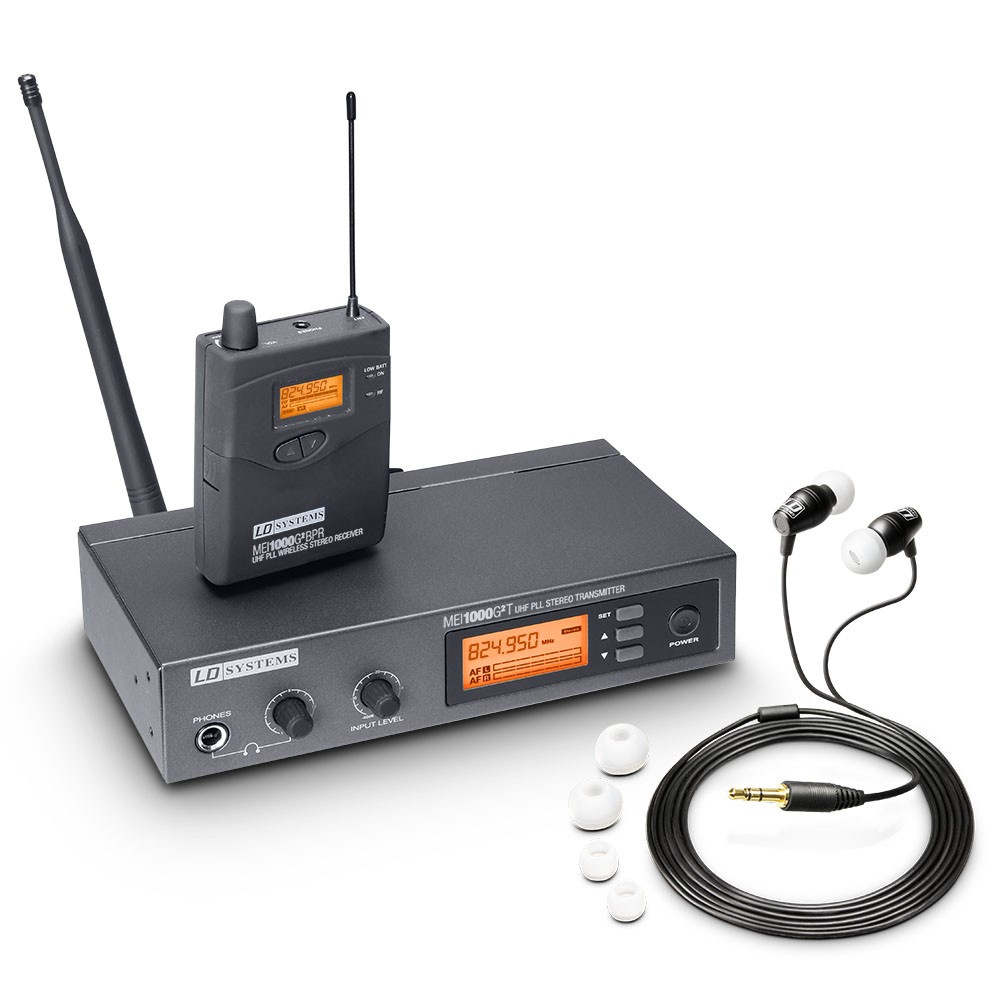

The new LD Systems MEI 1000 G2 is a license-free* in-ear monitoring system with 96 UHF channels that delivers outstanding sound quality with a large dynamic range and outstanding crosstalk behaviour in the 823-832 and 863-865 MHz frequency bands.

Switchable mono, stereo and focus monitoring modes as well as adjustable EQ and limiter functions permit natural sound reproduction for any application, with a frequency response of 60-16 Hz, a high S/N ratio and low THD. The...

Read on
MEI 1000 G2
MEI 1000 G2
In-Ear Monitoring System wireless

RRP 763,60 SGD / piece

Specifications
Specifications
Videos
Downloads/links

Specifications

General
Product type
In-ear Monitoring
Items in this set

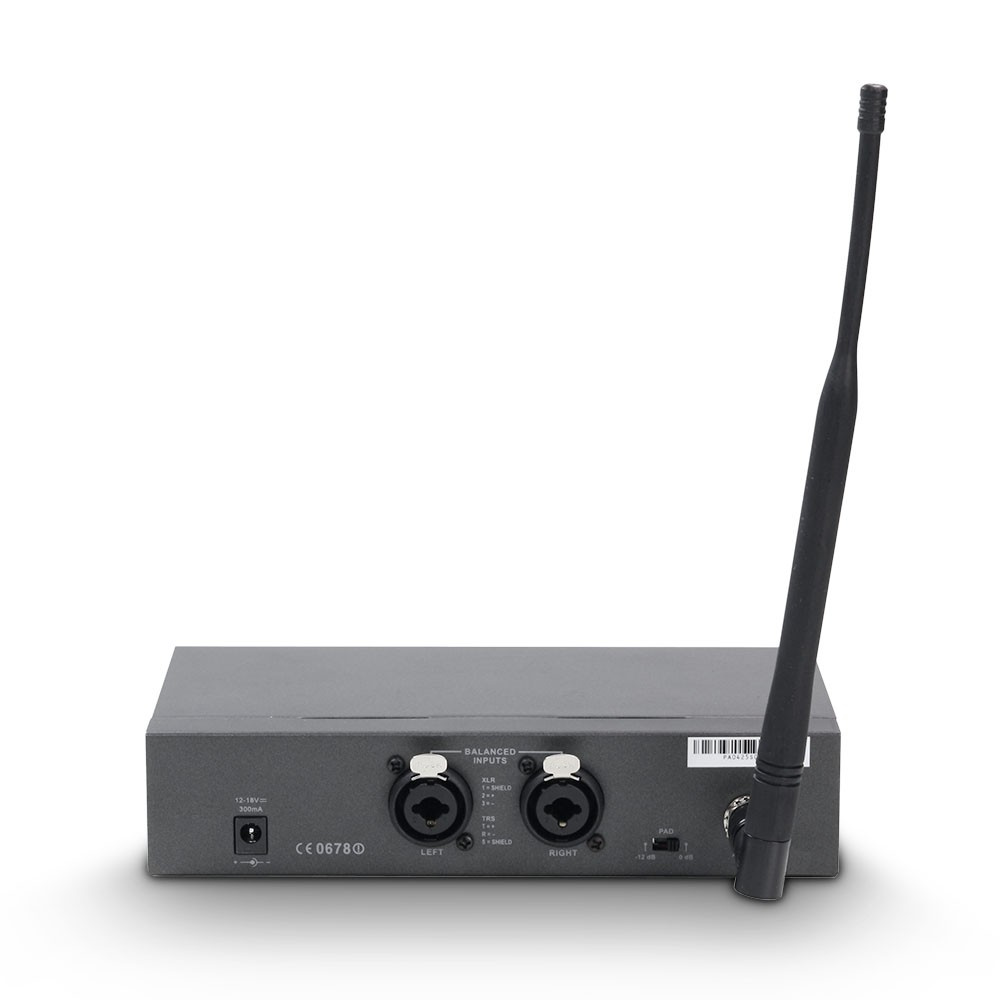

LD Systems MEI 1000 G2 T Transmitter for LDMEI1000G2 In-Ear Monitoring System
View items
Product type
Batteries
Type
Transmitters
Transmission frequency range
823 - 832 MHz, 863 - 865 MHz
Channels
96 (8 groups of 12 channels)
Transmission method
FM, stereo
Rated HF output power
10 mW
Frequency response
60 - 16000
Signal-to-noise ratio
85 dB
Inputs
2
Input connectors
6.3 mm jack, XLR
Input impedance (kOhms)
14 kOhm
Antenna connector
BNC
Controls
Down, input level, pad, Power, Set, Up, volume headphone
Indicators
LC display
Power supply
12 - 18 V DC
Width
200 mm
Height
44 mm
Depth
96 mm
Weight
1,117 kg
Accessories (included)
Antenna, Power supply

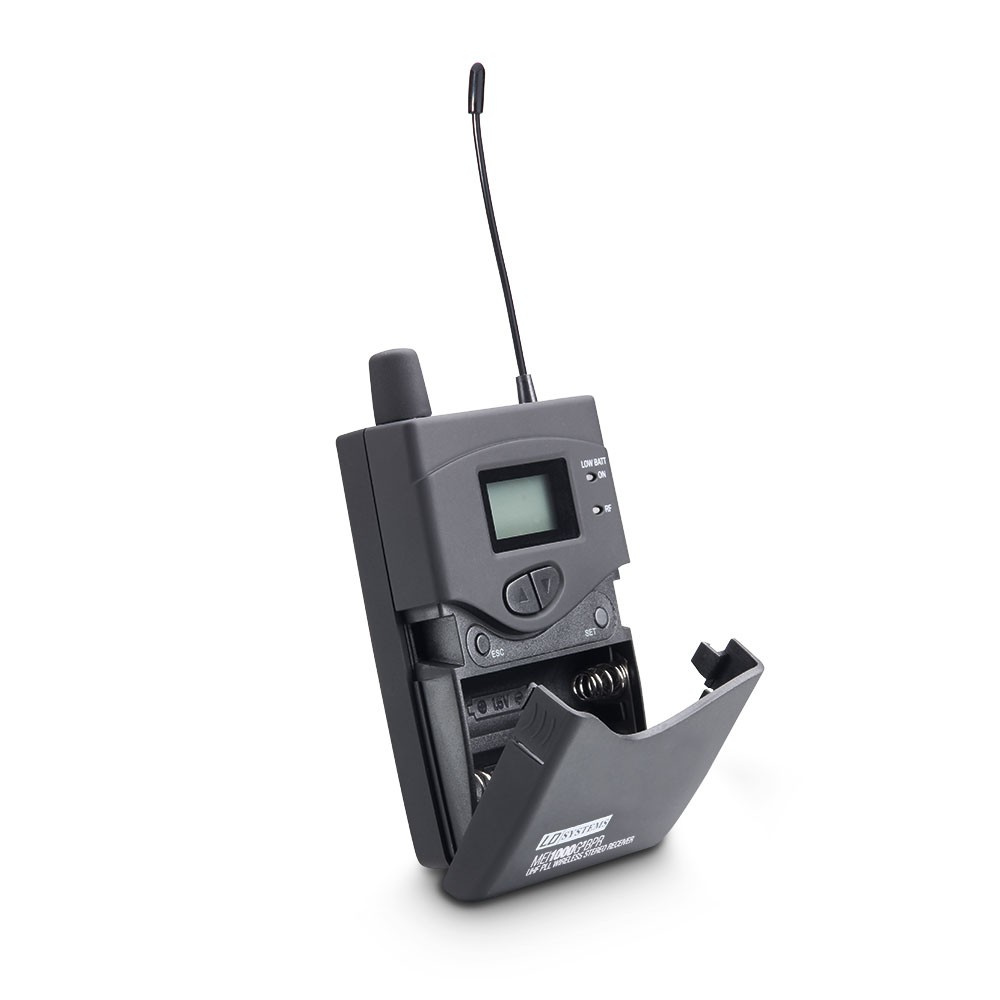

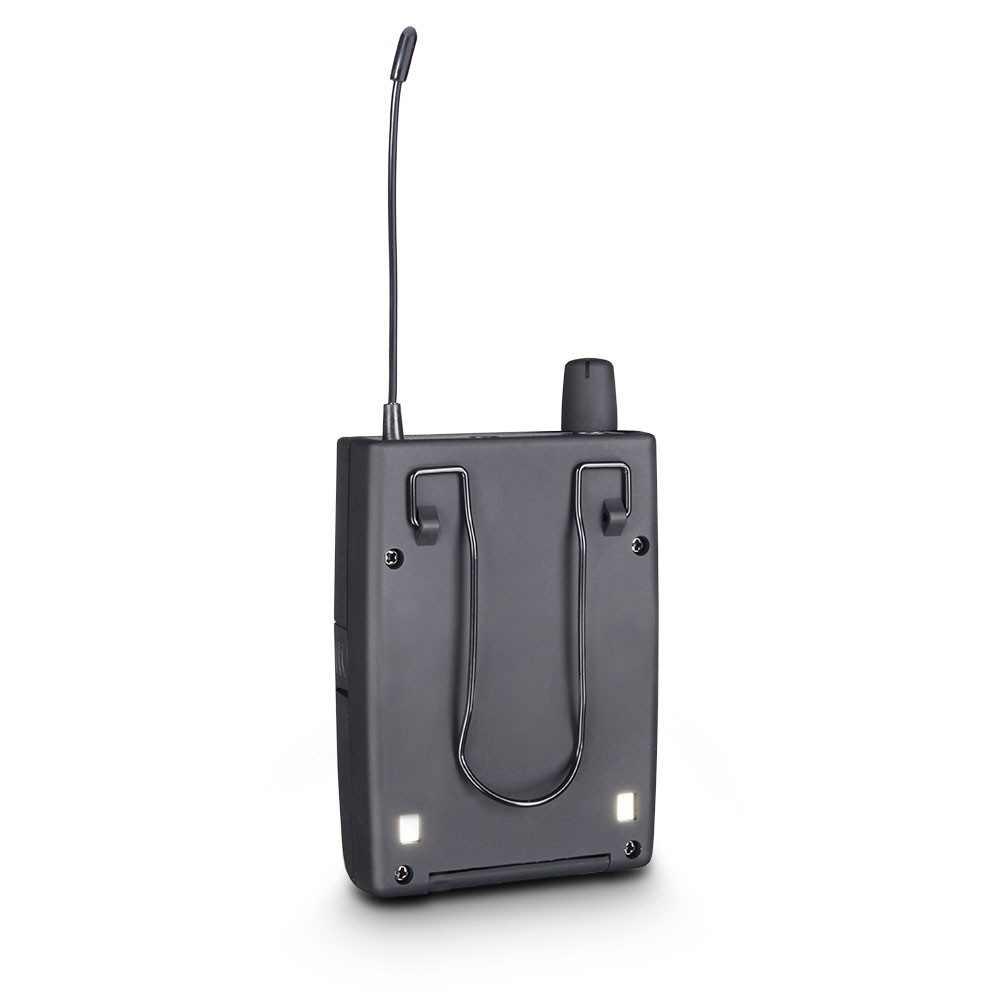

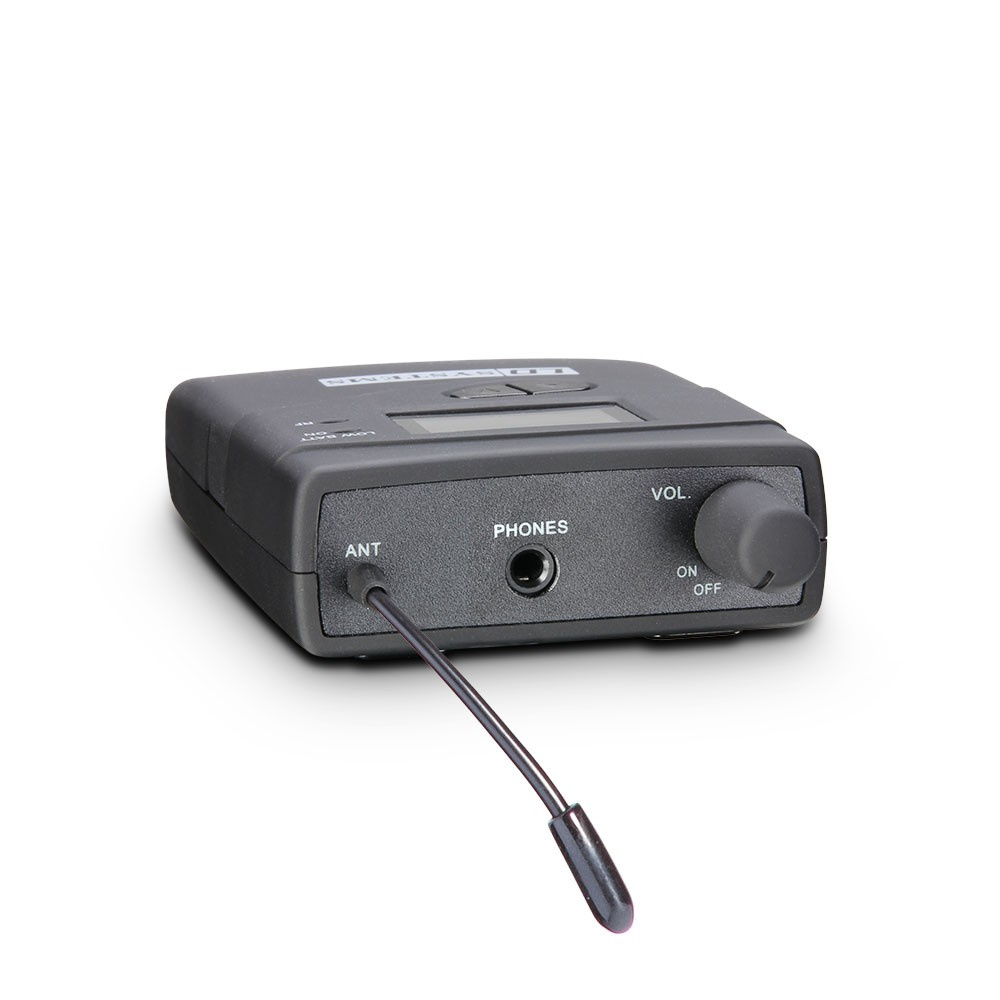

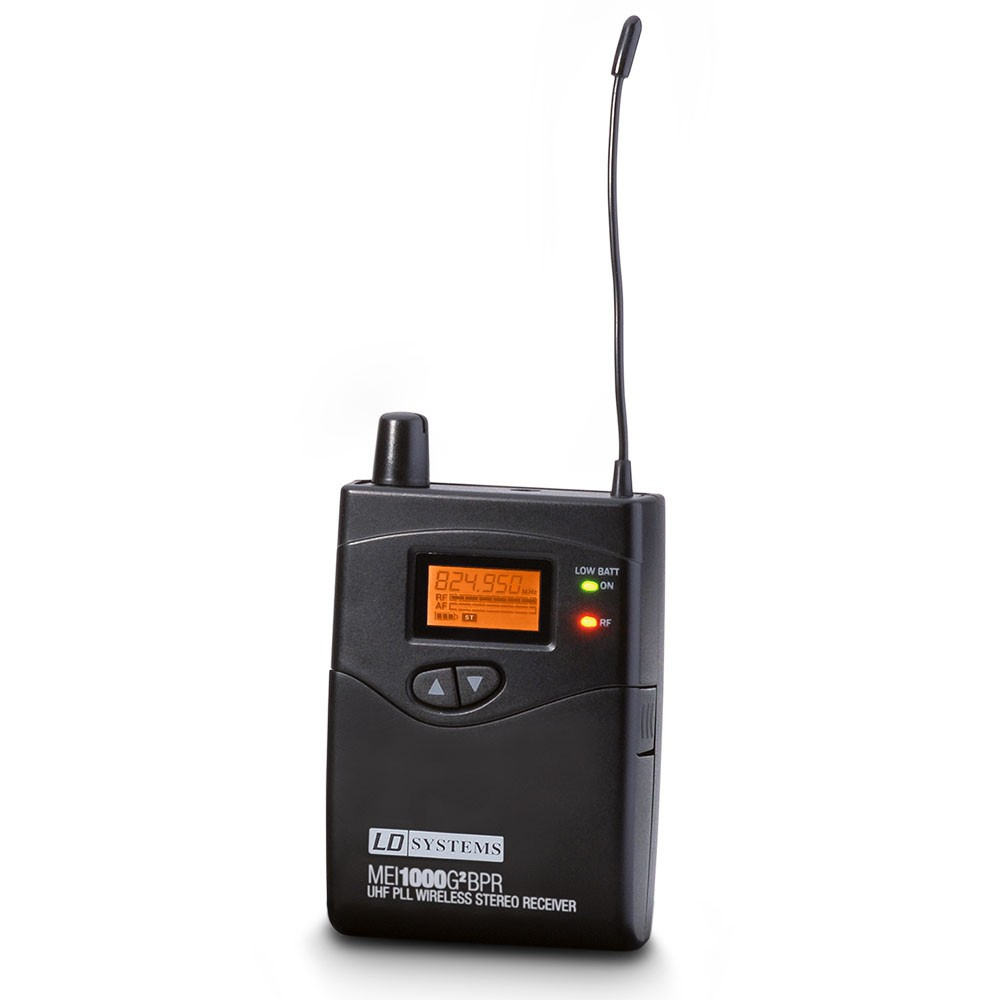

LD Systems MEI 1000 G2 BPR Receiver for LDMEI1000G2 In-Ear Monitoring System
View items
Product type
In-ear Monitoring Accessories
Type
Receivers
Transmission frequency range
823 - 832 MHz, 863 - 865 MHz
Channels
96 (8 groups of 12 channels)
Transmission method
FM, stereo
Total Harmonic Distortion (THD)
< 1 %
Frequency response
60 - 16000
Signal-to-noise ratio
80 dB
Audio output
3.5 mm TRS
Max. audio output level
100 mW
Operating time
> 12 hrs., battery-dependent
Controls
Down, Escape, Set, Up, volume
Indicators
LC display, low battery, Power
Power supply
2 x 1.5 V AA
Width
65 mm
Features
incl. batteries
Height
90 mm
Depth
24 mm
Weight
0,1 kg

Videos on this product

Downloads/links

User's Manual

Category: Manual

Type: pdf

File size: 7 MB

Device Frequency List

Category: Data Sheet

Type: pdf

File size: 61 KB

Notes on battery disposal

Category: Data Sheet

Type: pdf

File size: 77 KB

Country Frequency List

Category: Data Sheet

Type: pdf

File size: 78 KB

EC Declaration of Conformity

Category: Data Sheet

Type: pdf

File size: 293 KB

Tender documents

Category: Tender Specifications

Type: zip

File size: 162 KB

Highlights DJ & musician

Category: Catalog

Type: pdf

File size: 4 MB

Highlights installations

Category: Catalog

Type: pdf

File size: 7 MB

Item images

Category: Product images

Type: zip

File size: -

Name
Category
Type
File size
User's Manual Manual pdf 7 MB
Device Frequency List Data Sheet pdf 61 KB
Notes on battery disposal Data Sheet pdf 77 KB
Country Frequency List Data Sheet pdf 78 KB
EC Declaration of Conformity Data Sheet pdf 293 KB
Tender documents Tender Specifications zip 162 KB
Highlights DJ & musician Catalog pdf 4 MB
Highlights installations Catalog pdf 7 MB
Item images Product images zip -
