LD Systems
U506 BPH

Wireless Microphone System with Bodypack and Headset - 655 – 679 MHz.

slide 1 of 13
slide 1 to 3 of 13

RRP 763,60 SGD / piece

Item No.:
LDU506BPH
EAN:
4049521210716
Guarantee:
24 Months
Unit:
piece
Series:
Versions:
  • True diversity UHF wireless system
  • Shock-mounted dynamic and condenser microphone capsules
  • Automatic channel scan
  • Easy one-touch infrared frequency syncing
  • Pilot tone squelch circuit prevents noise
  • Switchable RF transmitter output (2, 10 or 30 mW)
  • Rugged enclosures
  • High-contrast OLED display
U506 BPH
U506 BPH
Wireless Microphone System with Bodypack and Headset - 655 –...

RRP 763,60 SGD / piece

Specifications
Specifications
Description
Videos
Accessories
Spare parts
Downloads/links

Specifications

General
Product type
Wireless Microphone Systems
Type
Headsets
Transmission frequency range
655 - 679 MHz
Weight
2,46 kg
Items in this set
LD Systems U506 BP Bodypack transmitter
View items
Product type
Wireless Microphone System Accessories
Type
Bodypack
Transmission frequency range
655 - 679 MHz
Frequency response
30 - 16000
Channels
96 (8 groups of 12 channels)
Groups
8
Inputs
Mini-XLR (3-pin)
Signal-to-noise ratio
>90 dB
Rated HF output power
Variable (2mW, 10mW, 30mW)
Controls
menu, Power On/Off, Set
Indicators
OLED Display
Power supply
2 x AA battery
Operating time
>10 h (with alkaline batteries)
Width
65 mm
Height
86 mm
Depth
23 mm
Weight
0,09 kg
Other features
detachable antenna, Pilot tone squelch, switchable gain, switchable gain, switchable RF power
LD Systems U506 R Receiver
View items
Product type
Wireless Microphone System Accessories
Type
true diversity
Transmission frequency range
655 - 679 MHz
Modulation Type
FM
Frequency response
30 - 16000
Channels
96 (8 groups of 12 channels)
Groups
8
Antenna inputs
2
Antenna connector
BNC
Signal-to-noise ratio
> 100 dB
Noise reduction
Squelch
Total Harmonic Distortion (THD)
< 0.3 %
Controls
digital encoder, Power On/Off, volume
Audio output, balanced
balanced XLR - 12 dBV / 6.3 mm TRS - 18 dBV
Indicators
OLED Display
Power supply
12 - 18 V DC
Audio output, unbalanced
6.3 mm jack
Accessories (included)
2 x antenna, Audio cable, power adapter
Width
212 mm
Height
44 mm
Depth
159 mm
Max. output level
+10 dBu
Weight
0,85 kg
Other features
channel search function, IR frequency synchronisation, Pilot tone
Operating voltage
12 V DC, 500 mA

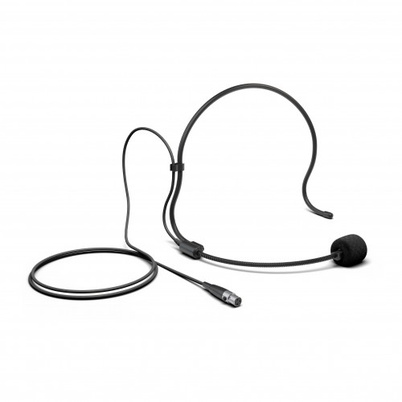

LD Systems WS 100 MH 1 Headset microphone, black
View items
Product type
Wireless Microphone System Accessories
Type
Headsets
Frequency response
100 Hz - 12 KHz
Directivity
Cardioid
Nominal impedance
680 Ohm(s)
Phantom power requierements
5 V
Microphone input
Mini-XLR (3-pin, female)
Cable length
1 m
Accessories (included)
Foam windscreen
Weight
0,049 kg

Description

The U500® Series vocal sets were developed in Germany to bring you affordable professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience.

Selectable transmit power up to 30 mW provides the U500® vocal sets with a free-field range of over 100 metres. They are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be operated simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be operated at the same time. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronisation of transmitter and receiver to facilitate easy set up.

High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter’s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500®’s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.

The U500® Series vocal sets are available with hand-held transmitters, headsets, lavalier microphones and single or double receivers. The hand-held transmitters feature interchangeable microphone capsules to suit singing or speaking.

Overview of frequency ranges of vocal sets:

  • U505 // 584 - 608 MHz // 12 systems can be used simultaneously
  • U506 // 655 - 679 MHz // 12 systems can be used simultaneously
  • U508 // 823 - 832 MHz + 863 - 865 MHz // six systems can be used simultaneously
  • U506 UK (Channel 38) // 606 – 614 MHz // six systems can be used simultaneously
  • U518 // 1785 – 1800 MHz // four systems can be used simultaneousl
