LD Systems
CURV 500 TS
Compact Touring Array System
slide 1 of 23
slide 1 to 3 of 23
Watch the video
Versions:
- Portable touring array system for live events, DJs and bands
- 25 premium transducers and WaveAhead® technology for breath-taking high-definition sound
- 1,000 watts RMS system power and 131 dB max. SPL
- Fully scalable for far and near field applications
- SmartLink® plug & play adapter for versatile application
- Durable aluminum unibody satellite construction
- 18 mm birch ply subwoofer cabinet with Polyurea...
- Portable touring array system for live events, DJs and bands
- 25 premium transducers and WaveAhead® technology for breath-taking high-definition sound
- 1,000 watts RMS system power and 131 dB max. SPL
- Fully scalable for far and near field applications
- SmartLink® plug & play adapter for versatile application
- Durable aluminum unibody satellite construction
- 18 mm birch ply subwoofer cabinet with Polyurea finish
- Ergonomic handles for convenient transport and setup
CURV 500 TS
Compact Touring Array System
RRP 3.921,90 SGD / piece
Specifications
General
Product type
PA Complete Systems
System output (RMS)
1000 W
Number of array satellites
4
Number of Smartlink adapters
1
Number of subwoofers
1
Max. SPL (continuous)
125 dB
Max. SPL (Peak)
131 dB
Color
Black
Frequency response
40 - 20000 Hz
Dispersion (H x V)
110° horizontal, vertical 34 °
RMS
Subwoofer: 700 W , Array Satellites: 300 W
Peak power
Subwoofer: 1400 W , Array Satellites: 600 W
Weight
48,2 kg
Amplifier
Class D
Protection circuits
DSP-based multiband limiter, overload, Short circuit, thermal overload
Accessories (included)
Distance bar, Power cord, Speaker cable CURV 500 CABLE 1 (2.2 m)
Subwoofer
Low/mid driver dimensions
15 "
Low/mid driver dimensions (mm)
381 mm
Cabinet construction
Bass Reflex
Housing material
plywood
Cabinet surface
Polyurea
Dimensions Subwoofer (W x H x D)
600 x 437 x587 mm
Subwoofer weight
35.5 kg
Subwoofer features
4 ergonomic handels, 6 System DSP Presets, Powercon, speakON output, Threaded flange M20
Items in this set
LD Systems CURV 500 D SAT Duplex Satellite Black
View items
Product type
Installation Loudspeakers
Type
Array Satellites, Wall-mounted Loudspeaker
Midrange dimensions
2 x 4 "
Tweeter dimensions
6 x 1 "
Load rating (RMS)
80 W
Peak power
160 W
Dispersion
110° horizontal, vertical 7 °
Impedance
8 Ohm(s)
SPL (1W/1m)
91 dB
Max. SPL
110 dB
Material
Die-cast aluminium
Surface
Powder coated
Color
Black
Width
122 mm
Height
240 mm
Depth
126 mm
Weight
3,3 kg
LD Systems CURV 500 SLA SmartLink Adapter for up to six LD CURV 500® Satellites, Black
View items
Product type
PA Complete Systems Accessories
Type
Smartlink® Adapter
Material
Die-cast aluminium
Surface
Powder coated
Connectors
1x Phoenix, 1x Speakon compatible
Color
Black
Width
122 mm
Height
57 mm
Depth
57 mm
Weight
0,35 kg
Features
2 x 16 mm flanges, 2x M6 thread for optional wall mount
LD Systems CURV 500 S2 Two Array satellites for the CURV 500® Portable Array System, black
View items
Product type
PA Complete Systems Accessories
Type
Array Satellites
Midrange dimensions
1 x 4 "
Tweeter dimensions
3 x 1 "
Load rating (RMS)
40 W
Peak power
80 W
Speakers per amplifier channel (DSP44/45K)
8x1, 4x2, 2x3, 2x4, 5, 6 (LOW Z)
Dispersion
110° horizontal, vertical (each satellite) 10 °
Impedance
16 Ohm(s)
SPL (1W/1m)
88 dB
Max. SPL
104 dB
Material
Die-cast aluminium
Surface
Powder coated
Color
Black
Width
122 mm
Height
122 mm
Depth
122 mm
Weight (pair)
3.44 kg
Features
internal crossover, M3 thread for safety rope for installations, metal grille, SmartLink® System, WaveAhead® Technology
Description
The compact, highly portable CURV 500® Touring Array System is fully scalable with up to four interlocking aluminium unibody line array elements operating on a SmartLink® plug and play adapter. It comes with two standard CURV satellites that feature a single 4" midrange and triple 1" high frequency drivers using LD Systems' WaveAhead® technology, and two duplex satellites with twice the speaker complement.
The ported 15" subwoofer base includes the CURV 500® Touring Array System's class D amplification with multiband limiter, short circuit, thermal and overcurrent protection. It sports comprehensive connectivity on combo and speakON compatible connectors, six DSP presets for quick system configuration, an M20 pole mount and three ergonomic handles for easy portability. Providing impressive versatility, the lightweight CURV 500® Touring Set delivers high definition audio with powerful punch, superb balance and extended vertical and horizontal coverage. The set includes a subwoofer pole and dedicated speaker cable.
Videos on this product
Accessories
slide 10 to 12 of 7
- Item No. LDFX300
- Product type Artist Pedal
- Type Home-Recording , Live
- Channels 2
- Microphone channels 1
- Item No. LDCURV500ADAPGR
- Item No. LDCURV500TSCB
- Series CURV 500
- Product type PA Complete Systems Accessories
- Type castor boards
- Material Birch multiplex
LD Systems
CURV 500 TS DB
Speaker Pole for LDCURV500TS
- Item No. LDCURV500TSDB
- Series CURV 500
- Product type PA Complete Systems Accessories
- Type Speaker Poles
- Tubing material Steel
- Item No. LDCURV500TSSUBPC
- Series CURV 500
- Product type Protective cover
- Type Transport bag
- Color Black
- Item No. LDCURV500TSSATBAG
- Series CURV 500
- Product type PA Complete Systems Accessories
- Type Transport Bags
- Color Black
- Item No. GSFCURVM
- Product type Stands and Tripod Accessories
- Color Black
- Material Steel
- Surface Powder coated
- Item No. LDFX300
- Product type Artist Pedal
- Type Home-Recording , Live
- Channels 2
- Microphone channels 1
- Item No. LDCURV500ADAPGR
- Item No. LDCURV500TSCB
- Series CURV 500
- Product type PA Complete Systems Accessories
- Type castor boards
- Material Birch multiplex
LD Systems
CURV 500 TS DB
Speaker Pole for LDCURV500TS
- Item No. LDCURV500TSDB
- Series CURV 500
- Product type PA Complete Systems Accessories
- Type Speaker Poles
- Tubing material Steel
- Item No. LDCURV500TSSUBPC
- Series CURV 500
- Product type Protective cover
- Type Transport bag
- Color Black
- Item No. LDCURV500TSSATBAG
- Series CURV 500
- Product type PA Complete Systems Accessories
- Type Transport Bags
- Color Black
- Item No. GSFCURVM
- Product type Stands and Tripod Accessories
- Color Black
- Material Steel
- Surface Powder coated
- Item No. LDFX300
- Product type Artist Pedal
- Type Home-Recording , Live
- Channels 2
- Microphone channels 1
- Item No. LDCURV500ADAPGR
- Item No. LDCURV500TSCB
- Series CURV 500
- Product type PA Complete Systems Accessories
- Type castor boards
- Material Birch multiplex
LD Systems
CURV 500 TS DB
Speaker Pole for LDCURV500TS
- Item No. LDCURV500TSDB
- Series CURV 500
- Product type PA Complete Systems Accessories
- Type Speaker Poles
- Tubing material Steel
- Item No. LDCURV500TSSUBPC
- Series CURV 500
- Product type Protective cover
- Type Transport bag
- Color Black
- Item No. LDCURV500TSSATBAG
- Series CURV 500
- Product type PA Complete Systems Accessories
- Type Transport Bags
- Color Black
- Item No. GSFCURVM
- Product type Stands and Tripod Accessories
- Color Black
- Material Steel
- Surface Powder coated
- Item No. LDFX300
- Product type Artist Pedal
- Type Home-Recording , Live
- Channels 2
- Microphone channels 1
- Item No. LDCURV500ADAPGR
- Item No. LDCURV500TSCB
- Series CURV 500
- Product type PA Complete Systems Accessories
- Type castor boards
- Material Birch multiplex
LD Systems
CURV 500 TS DB
Speaker Pole for LDCURV500TS
- Item No. LDCURV500TSDB
- Series CURV 500
- Product type PA Complete Systems Accessories
- Type Speaker Poles
- Tubing material Steel
Recommendations
slide 1 of 2
Adam Hall Cables
5 STAR MMF 0300
Microphone Cable | Neutrik® XLR female x XLR male | 3 m
RRP
as of
45,87 SGD
*
incl.
% discount
*
Adam Hall Cables
5 STAR MMF 0500
Microphone Cable | Neutrik® XLR female x XLR male | 5 m
RRP
as of
50,42 SGD
*
incl.
% discount
*
Adam Hall Cables
5 STAR MMF 1000
Microphone Cable | Neutrik® XLR female x XLR male | 10 m
RRP
as of
59,90 SGD
*
incl.
% discount
*
Series
slide 1 of 4
LD Systems
CURV 500 CABLE 2
Speaker Cable with Terminal Block 3 m for CURV 500
RRP
as of
41,42 SGD
*
incl.
% discount
*
LD Systems
CURV 500 CABLE 4
Speaker Cable 8 m for CURV 500
RRP
as of
58,42 SGD
*
incl.
% discount
*
LD Systems
CURV 500 DB
Adjustable Speaker Pole for CURV 500 Portable Array System
RRP
as of
76,00 SGD
*
incl.
% discount
*
LD Systems
CURV 500 SAT BAG
Padded transport bag for 4 CURV 500 Satellites
RRP
as of
185,40 SGD
*
incl.
% discount
*
LD Systems
CURV 500 SLA
SmartLink Adapter for up to six LD CURV 500® Satellites, Black
Price on request
LD Systems
CURV 500 WM B
Wall Mounting Bracket for CURV 500 Satellites, Black
Price on request
LD Systems
CURV 500 TS SUB PC
Padded protective Cover for LD CURV 500® TS Subwoofer
RRP
as of
163,60 SGD
*
incl.
% discount
*
LD Systems
CURV 500 DB W
Adjustable Distance Bar for CURV 500 Portable Array System, White
RRP
as of
107,90 SGD
*
incl.
% discount
*
LD Systems
CURV 500 I AMP
4-Channel Class D Installation Amplifier
Price on request
LD Systems
CURV 500 S2 W
Two Array Satellites for the CURV 500® Portable Array System, White
Price on request
LD Systems
CURV 500 TS
Compact Touring Array System
RRP
as of
3.921,90 SGD
*
incl.
% discount
*
LD Systems
CURV 500 TS CB
Castor board for LD CURV 500 TS subwoofer
RRP
as of
259,40 SGD
*
incl.
% discount
*
Stories
slide 1 to 3 of 8
16. Oct 2023
Curvy Sound on Europe’s Rivers – LD Systems CURV 500 on Avalon Waterways’ Cruise Ships
3. Mar 2022
Bouncing like in the club – LD Systems & Cameo in the Hyperspace trampoline parks
1. Dec 2021
In This Garden We Loved – Immersive Theatre Production with LD Systems CURV 500 at the Sejong Centre in Seoul, Korea
4. Nov 2019
God’s Word Audible to Everyone – LD Systems CURV 500 in Mølholm Church in Denmark
6. Sept 2018
Press: Great Reception – Adam Hall Asia Pte Ltd Hosts APAC Distributor Summit in Singapore
Spare parts
LDCURV500ADAPGR
Grille for CURV500 Adapter, Black
RRP
as of
16,23 SGD
*
incl.
% discount
*
LDCURV500DSAT
Duplex Satellite Black
Price on request
LDCURV500S2
Two Array satellites for the CURV 500® Portable Array System, black
Price on request

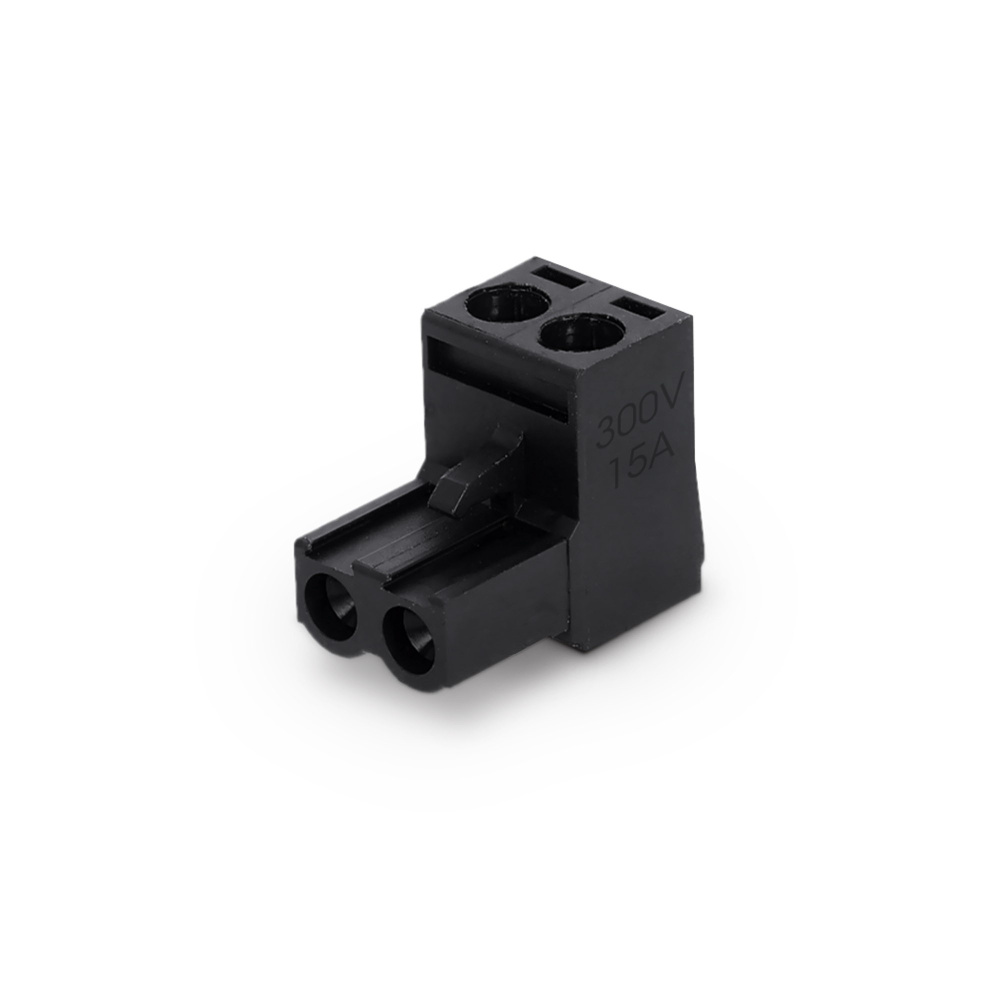

LDCURV500TB
Terminal Block for CURV 500
Price on request
LDCURV500TSDISHM20
Handle Dish. Incl. M20 Thread for LDCURV500TS
RRP
as of
106,60 SGD
*
incl.
% discount
*
LDCURV500TSHANDLE
Handle for LDCURV500TS Subwoofer
RRP
as of
42,50 SGD
*
incl.
% discount
*
LDCURV500TSREARFEET
Rear Feet (4PCS) for LDCURV500TS Subwoofer
RRP
as of
21,60 SGD
*
incl.
% discount
*
LDCURV500TSSATGR
Grille for LDCURV500TS Satellite
RRP
as of
42,50 SGD
*
incl.
% discount
*
LDCURV500TSSUB
Subwoofer- Complete
RRP
as of
2.887,00 SGD
*
incl.
% discount
*
LDCURV500TSSUBGR
Grille for LDCURV500TS Subwoofer
RRP
as of
172,13 SGD
*
incl.
% discount
*
LDCURV500TSSUBLS
15" Speaker for LDCURV500TS Subwoofer
RRP
as of
546,00 SGD
*
incl.
% discount
*
Downloads/links
Customers also bought
slide 6 to 8 of 20
- Item No. LDMAUIP900G
- Series MAUI P900
- Product type PA Complete Systems
- Type active
- Color Platinum Grey
- Item No. LDMAUI11G3
- Series MAUI
- Product type PA Complete Systems
- Type Powered
- Color Black
- Item No. CLF2FC
- Series F-Series
- Product type LED Fresnel Spotlight
- Type Theater Fresnel
- Colour spectrum RGBW
- Item No. LDMAUI5
- Series MAUI
- Weight 11,3 kg
- Product type PA Complete Systems
- Color Black
- Item No. GLS431B
- Product type Stands and Tripods
- Type Lighting Stands
- Tube material Steel
- Tubing colour Black
- Item No. CLZW600
- Series ZENIT® Series
- Product type LED Outdoor Wash Light
- Type ZENIT
- Colour spectrum RGBW
- Item No. LDMAUI28G3
- Series MAUI
- Product type PA Complete Systems
- Type Powered
- Color Black
- Item No. CLAZORS2
- Series AZOR® Series
- Product type LED Moving Lights
- Type Spot
- Colour spectrum Cold white
- Item No. CLOTOSH5
- Series OTOS® Series
- Product type Discharge Moving Lights
- Type IP65 , Moving Head
- Number of lamps 1
- Item No. CLTS200FC
- Series THEATER SPOT
- Product type LED Fresnel Spotlight
- Type Fresnel Theater Spot with zoom function
- Colour spectrum RGBALC
LD Systems
CURV 500 TS
Compact Touring Array System
- Item No. LDCURV500TS
- Series CURV 500
- Product type PA Complete Systems
- System output (RMS) 1000 W
- Number of array satellites 4
- Item No. GSS5211BSET1
- Product type Stands and Tripods
- Type Speaker Stands
- Weight 6 kg
- Item No. CLZW600SMD
- Series ZENIT® Series
- Product type LED Outdoor Wash Light
- Type Outdoor
- Colour spectrum RGBW
- Item No. LDMAUI44G2
- Series MAUI
- Product type PA Complete Systems
- Type Powered
- Color Black
- Item No. CLASZ300
- Series AURO® Series
- Product type LED Moving Lights
- Type Moving Head
- Colour spectrum Cold white
- Item No. LDMAUI28G2
- Series MAUI
- Weight 30,9 kg
- Product type PA Complete Systems
- Type active
- Item No. CLZB200
- Series ZENIT® Series
- Product type LED Outdoor Wash Light
- Type ZENIT
- Colour spectrum RGBW
- Item No. CLEW7
- Series EVOS® Series
- Product type LED Moving Lights
- Type Moving Head
- Colour spectrum RGBWW
- Item No. LDCURV500PS
- Series CURV 500
- Product type PA Complete Systems
- System output (RMS) 920 W
- Color Black
- Item No. CLEW3
- Series EVOS® Series
- Product type LED Moving Lights
- Type Moving Head
- Colour spectrum RGBWW
- Item No. LDMAUIP900G
- Series MAUI P900
- Product type PA Complete Systems
- Type active
- Color Platinum Grey
- Item No. LDMAUI11G3
- Series MAUI
- Product type PA Complete Systems
- Type Powered
- Color Black
- Item No. CLF2FC
- Series F-Series
- Product type LED Fresnel Spotlight
- Type Theater Fresnel
- Colour spectrum RGBW
- Item No. LDMAUI5
- Series MAUI
- Weight 11,3 kg
- Product type PA Complete Systems
- Color Black
- Item No. GLS431B
- Product type Stands and Tripods
- Type Lighting Stands
- Tube material Steel
- Tubing colour Black
- Item No. CLZW600
- Series ZENIT® Series
- Product type LED Outdoor Wash Light
- Type ZENIT
- Colour spectrum RGBW
- Item No. LDMAUI28G3
- Series MAUI
- Product type PA Complete Systems
- Type Powered
- Color Black
- Item No. CLAZORS2
- Series AZOR® Series
- Product type LED Moving Lights
- Type Spot
- Colour spectrum Cold white
- Item No. CLOTOSH5
- Series OTOS® Series
- Product type Discharge Moving Lights
- Type IP65 , Moving Head
- Number of lamps 1
- Item No. CLTS200FC
- Series THEATER SPOT
- Product type LED Fresnel Spotlight
- Type Fresnel Theater Spot with zoom function
- Colour spectrum RGBALC
