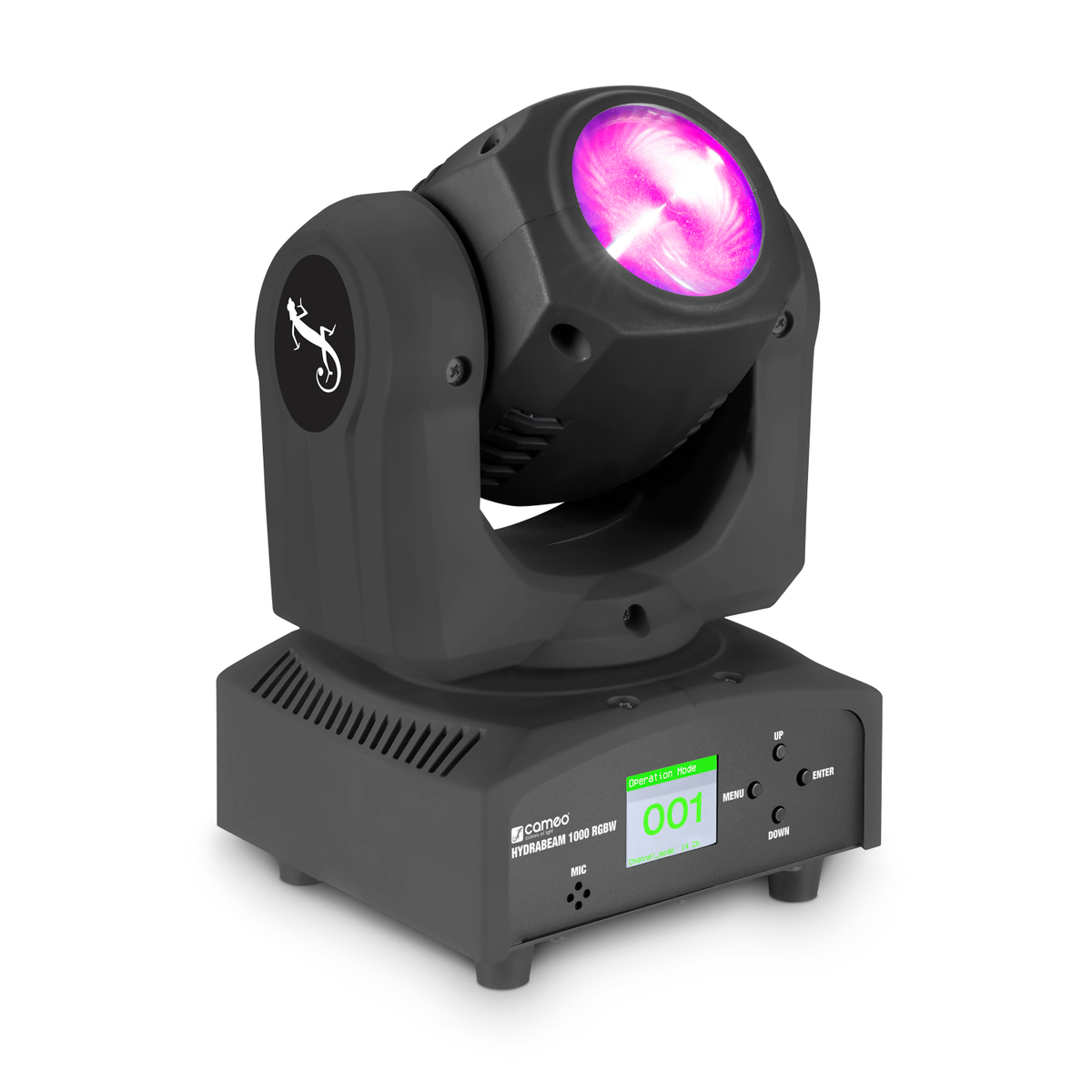

Cameo
HYDRABEAM 1000 RGBW

Moving Head with 32 W RGBW Quad-LED

Archived item

Item No.:

CLHB1000RGBW

EAN:

4049521307676

Guarantee:

24 Months

Unit:

piece

Series:

HYDRA

Archived item: This item is no longer in our product range.

Compact ultra-fast moving head
540° pan and 270° tilt
Powerful 32 W Cree RGBW quad LED
5 modes of DMX control
Standalone, master and slave capability
4 effective automated operating modes
Built-in microphone for sound activation
4-button colourful LC-Display for easy menu navigation and configuration

HYDRABEAM 1000 RGBW

Moving Head with 32 W RGBW Quad-LED

RRP 252.80 $ / piece

Specifications

General

Product type

LED Moving Lights

Type

LED Moving Effects

Colour spectrum

RGBW

Number of LEDs

LED type

32 W

Dispersion

2.5 °

DMX input

XLR 3-pin male

DMX output

XLR 3-pin female

DMX mode

12-channel, 14-channel, 3-channel, 6-channel, 9-channel

DMX Functions

colour macro, Dimmer, PAN, Pan/Tilt Speed, RGBW, Show Mode, Strobe, TILT

PAN movement

540°

TILT movement

270°

High Speed Strobe

1 - 20 Hz

Standalone modes

Auto programs, sound programs

Controls

Enter, Mode, Value Down, Value Up

Indicators

LC display

Operating voltage

100 V AC - 240 V AC, 50 - 60 Hz

Power consumption

65 W

Power supply connector

IEC power connector male

Housing material

ABS plastic, Metal

Cabinet colour

Black

Cooling

low-noise fan

Illuminance

blue 9600lx @ 1m, green 42400lx @ 1m, red 17900lx @ 1m, white 67200lx @ 1m

Width

146 mm

Height

255 mm

Depth

156 mm

Weight

2,7 kg

Description

The Cameo Hydrabeam 1000 RGBW is a compact moving head with ultra-fast 540° pan and 270° tilt. It is equipped with a powerful 32 W quad LED by Cree for brilliant, for brilliant colours and projects razor sharp beams with an extremely focused 2.5° spread.

The fixture features 5 modes of DMX control, a built-in microphone for sound activation and fully automated operating modes. It includes standalone, master and slave capability along with smooth dimming and high-speed strobe functions. A 4-button colour display enables easy menu navigation and configuration.

The compound ABS and metal construction sports a low-noise fan for cool and quiet operation, 3-pin DMX connectors and an IEC mains inlet. The Hydrabeam 1000 RGBW runs on 100 to 240 volts AC, power consumption is a very low 65 W only.
