Cameo

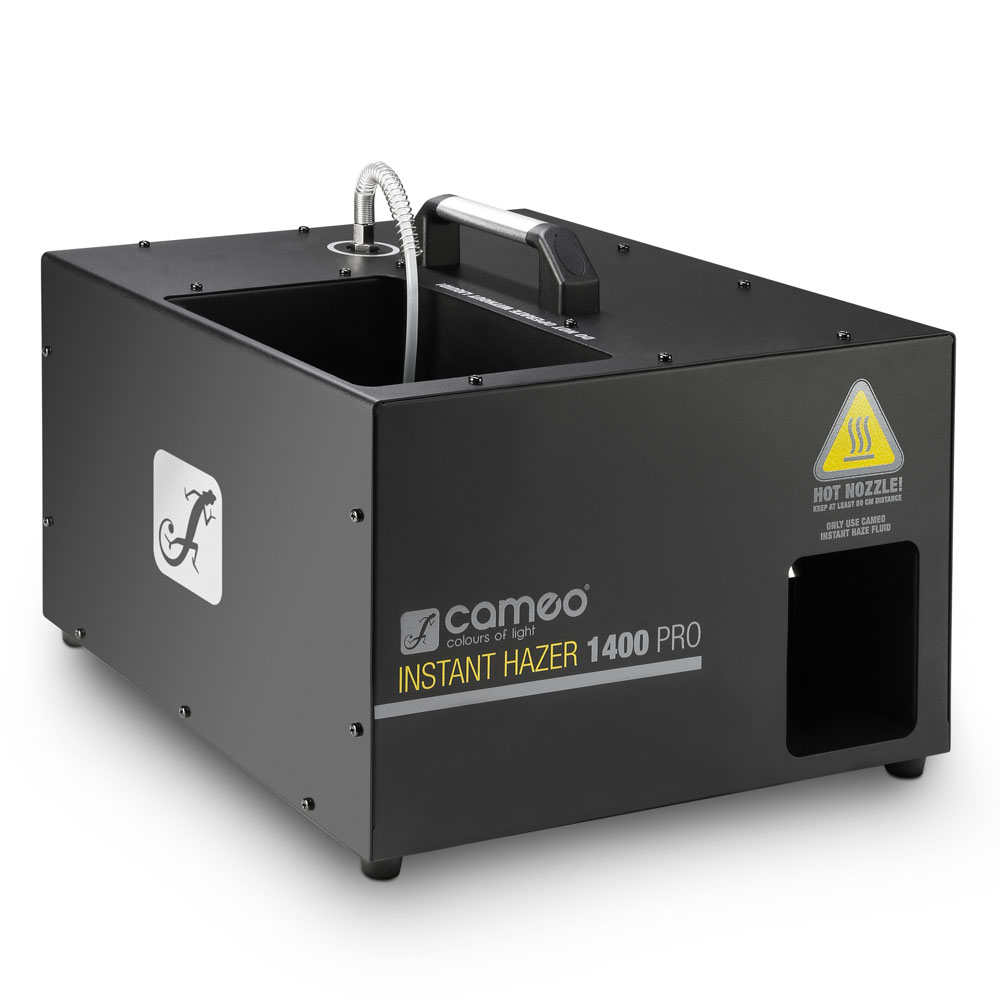

INSTANT HAZER 1400 PRO

Hazer with Microprocessor Control

slide 1 of 12
slide 1 to 3 of 12

RRP 1,049.30 $ / piece

Item No.:
CLIH1400PRO
EAN:
4049521200823
Guarantee:
24 Months
Unit:
piece
Series:
  • Microprocessor controlled 1400 Watt Hazer
  • Max. output volume 991 m³ per minute
  • Long-lasting evaporation tube made of stainless steel 316
  • Automatic self-cleaning
  • Output and fan individually adjustable in 100 increments
  • 2-channel DMX control and standalone mode
  • Built-in insert for fluid canisters up to 5 L
  • Whisper-quiet operation
  • Ideal for TV, film, theatre, discos and live events
  • Enriches the...
Read on
INSTANT HAZER 1400 PRO
INSTANT HAZER 1400 PRO
Hazer with Microprocessor Control

RRP 1,049.30 $ / piece

Specifications
Specifications
Description
Videos
Stories
Downloads/links

Specifications

General
Product type
Fog and Wind Machines
Type
hazer
Power
1400 W
Max. Output
991 m³/min
Warm-up Time
45 sec.
Fluid Consumption
17 ml/min (100% Output)
DMX input
XLR 3-pin male, XLR 5-pin male
DMX output
XLR 3-pin female, XLR 5-pin male
DMX mode
2-channel
DMX Functions
fan, Vapour Volume
Standalone modes
fan, Vapour Volume
Controls
Start/Stop/Mode, Value Down, Value Up
Indicators
3-segment LED display
Power supply
240 V AC, 50 Hz
Power consumption
1400 W
Overheating Protection
heating element with thermostat
Power connector
Power cord with safety plug (Type E / CEE 7/7)
Cabinet colour
Black
Recommended Fluid
INSTANT HAZE (not included)
Total dimensions
Width
345 mm
Height
300 mm
Depth
365 mm
Weight
14,21 kg

Description

With a maximum output volume of 991 m³ per minute, an extremely short warm-up time of only 45 seconds and whisper-quiet operation, the Instant Hazer 1400 Pro from Cameo's Instant series is perfect for discos, live events, theatres, TV and film.

The highly efficient micro-processor-controlled hazer features a durable evaporation tube made of austenitic stainless steel and automatic self-cleaning to prevent clogging and minimise maintenance. Haze output is consistent without additional heating and - like the fan speed - is adjustable in 1% increments for stages and rooms of any size. At full output, fluid consumption is only 17 ml per minute.

The Instant Hazer 1400 Pro can be controlled via DMX in 2-channel mode and can also be used stand-alone. It is equipped with 3-pin and 5-pin DMX inputs and outputs. The robust construction features a 3-digit LED display, a slot for fluid canisters up to 5 litres and is protected against overheating. The Cameo Instant Hazer 1400 Pro generates a very fine, long-lasting haze to enhance any light show with effective, atmospheric effects.

For best results, use only Cameo Instant Haze fluid, which has been developed specifically for Cameo hazers. Use of other fluids will void the warranty and may damage the device.

Videos on this product

Stories

slide 1 to 3 of 8

Downloads/links

User's manual

Category: Manual

Type: pdf

File size: 931 KB

DMX Control Table

Category: Data Sheet

Type: pdf

File size: 32 KB

Technical drawing

Category: Data Sheet

Type: dwg

File size: 1006 KB

Technical drawing

Category: Data Sheet

Type: pdf

File size: 261 KB

Fixtures Library Daslight V3

Category: Software

Type: zip

File size: 2 KB

Fixtures Library grandMA

Category: Software

Type: zip

File size: 994 Byte

Cameo Vektorworks

Category: Software

Type: zip

File size: 24 MB

Tender documents

Category: Tender Specifications

Type: zip

File size: 131 KB

Cameo Product Catalogue 2024

Category: Catalog

Type: pdf

File size: 12 MB

Item images

Category: Product images

Type: zip

File size: -

Name
Category
Type
File size
User's manual Manual pdf 931 KB
DMX Control Table Data Sheet pdf 32 KB
Technical drawing Data Sheet dwg 1006 KB
Technical drawing Data Sheet pdf 261 KB
Fixtures Library Daslight V3 Software zip 2 KB
Fixtures Library grandMA Software zip 994 Byte
Cameo Vektorworks Software zip 24 MB
Tender documents Tender Specifications zip 131 KB
Cameo Product Catalogue 2024 Catalog pdf 12 MB
Item images Product images zip -
