Cameo
MOVO BEAM Z100

Unlimited Rotation Beam Moving Head with LED Ring and Zoom

slide 1 of 19
slide 1 to 3 of 19

RRP 947.59 $ / piece

Item No.:
CLMBZ100
EAN:
4049521259081
Guarantee:
24 Months
Unit:
piece
  • Ultra-bright 60 W OSRAM RGBW LED for saturated primary colours, subtle pastel hues and natural shades of white
  • Individually controllable 4-segment RGB LED ring with single pixel control
  • 2 high-speed, high torque motors for ultra-fast unlimited pan and tilt
  • Motor zoom with 4° to 30° range
  • Spectacular automated modes
  • 4 selectable dimming curves
  • 4 DMX modes, standalone or master/slave operation
  • 2.5" TFT display and...
Read on
MOVO BEAM Z100
MOVO BEAM Z100
Unlimited Rotation Beam Moving Head with LED Ring and Zoom

RRP 947.59 $ / piece

Specifications
Specifications
Description
Videos
Stories
Downloads/links

Specifications

General
Product type
LED Moving Lights
Type
LED Moving Effects
Colour spectrum
RGBW
Number of LEDs
1
LED type
60W OSRAM (approx. 50.000 operating hours)
Refresh rate
1000 Hz
Dispersion
4 - 30 °

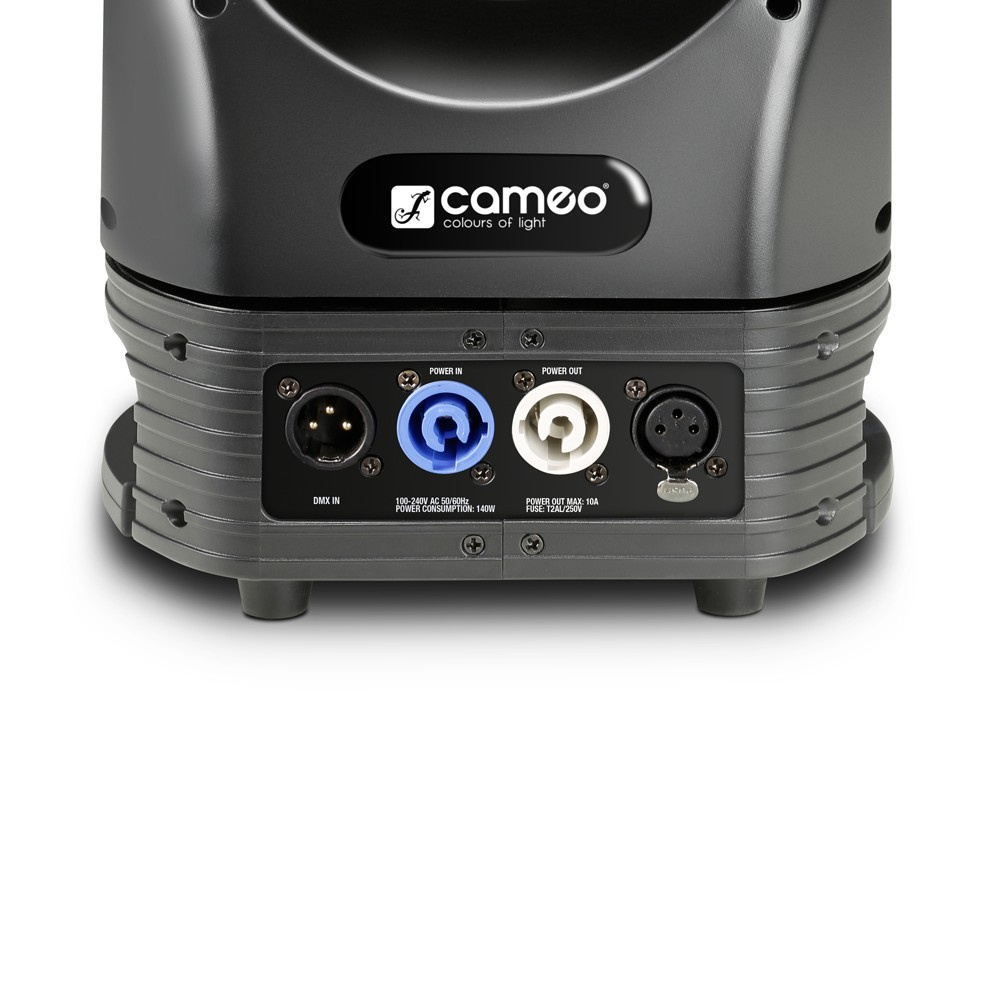

DMX input
XLR 3-pin male
DMX output
XLR 3-pin female
DMX mode
16-channel, 36-channel, 5-channel
DMX Functions
Auto programs, colour fade, colour jump, colour macro, Colour Ring Macro, Colour Ring Macro Speed, Dimmer Colour Ring, Dimmer Curve, Dimmer Fine, PAN, PAN UNLIMITED ROTATION, Pan/Tilt fine, Pan/Tilt Macros, Pan/Tilt Speed, RGB Ring 1-4, RGBW, Strobe Colour Ring, Stroboscope, TILT, TILT UNLIMITED ROTATION, Zoom
PAN movement
unlimited
TILT movement
unlimited
Standalone modes
Auto programs, Static Mode
Controls
Enter, Mode, Value Down, Value Up
Indicators
2,5” TFT Display
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
140 W
Power supply connector
Blue and white power I/O
Housing material
ABS plastic, Metal
Cabinet colour
Black
Cooling
fan
Illuminance
8500lx @ 3m
Luminous flux
1220 lm
Width
210 mm
Height
299 mm
Depth
210 mm
Weight
6,5 kg

Description

Taking the success of the MOVO®Beam 100 one step further, the Movo® Beam Z 100 is an ultra-fast moving head featuring a powerful motor zoom. With a zoom range of 4 to 30 degrees, it delivers tightly focussed beams, beatiful wash and amazing zoom effects. A central high-performance 60 watt OSRAM LED with a 50,000 hour lifespan produces rich RGBW mixes with saturated primary colours, subtle pastel hues and natural shades of white. It is surrounded by an RGB LED ring with 4 individually controllable segments that enable a spectacular lighting performance.

Driven by two high-speed, high-torque motors the MOVO® BEAM Z 100 provides endless pan and tilt rotation with smooth precision. It sports a bright 2.5" TFT display with touch sensitive buttons for convenient configuration, 3 modes of DMX control and spectacular automated modes. Seamless dimming with 4 selectable curves and a rapid strobe add to a brilliant and exciting performance.

The MOVO® BEAM Z 100's compact ABS and metal housing features temperature controlled fan cooling to ensure reliable operation and extended LED life. It comes with an omega bracket for a variety of mounting options.
