Item no.: CLDROPB4SET2
Guarantee: 24 months
EAN: 4049521449949
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:DROP® Series
Versions:
Item highlights:

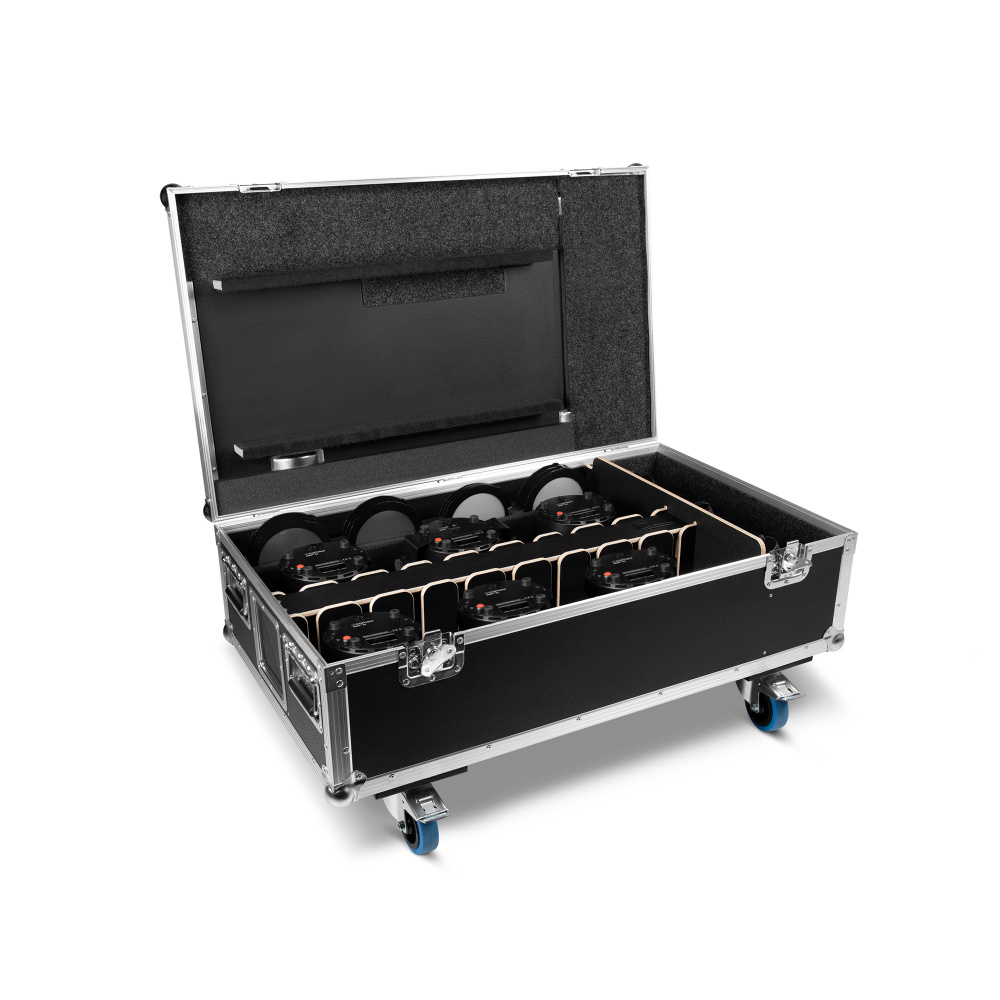

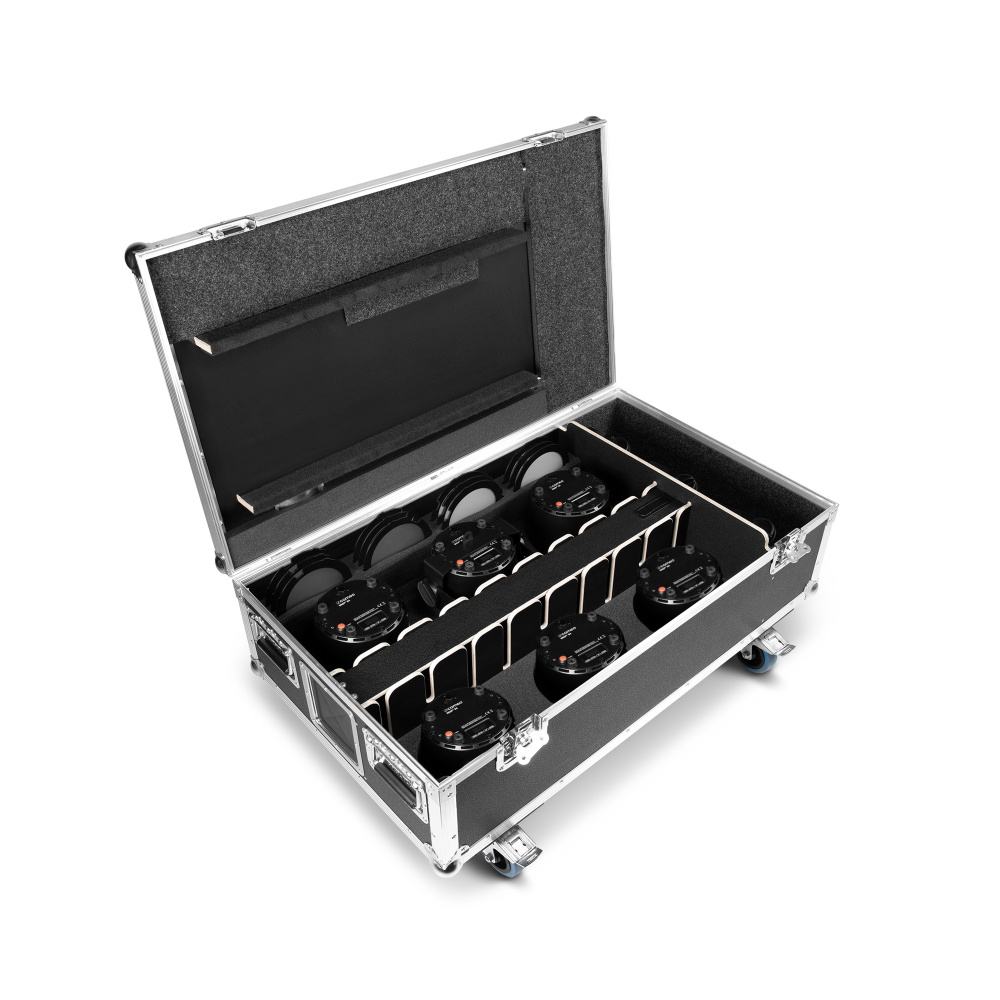

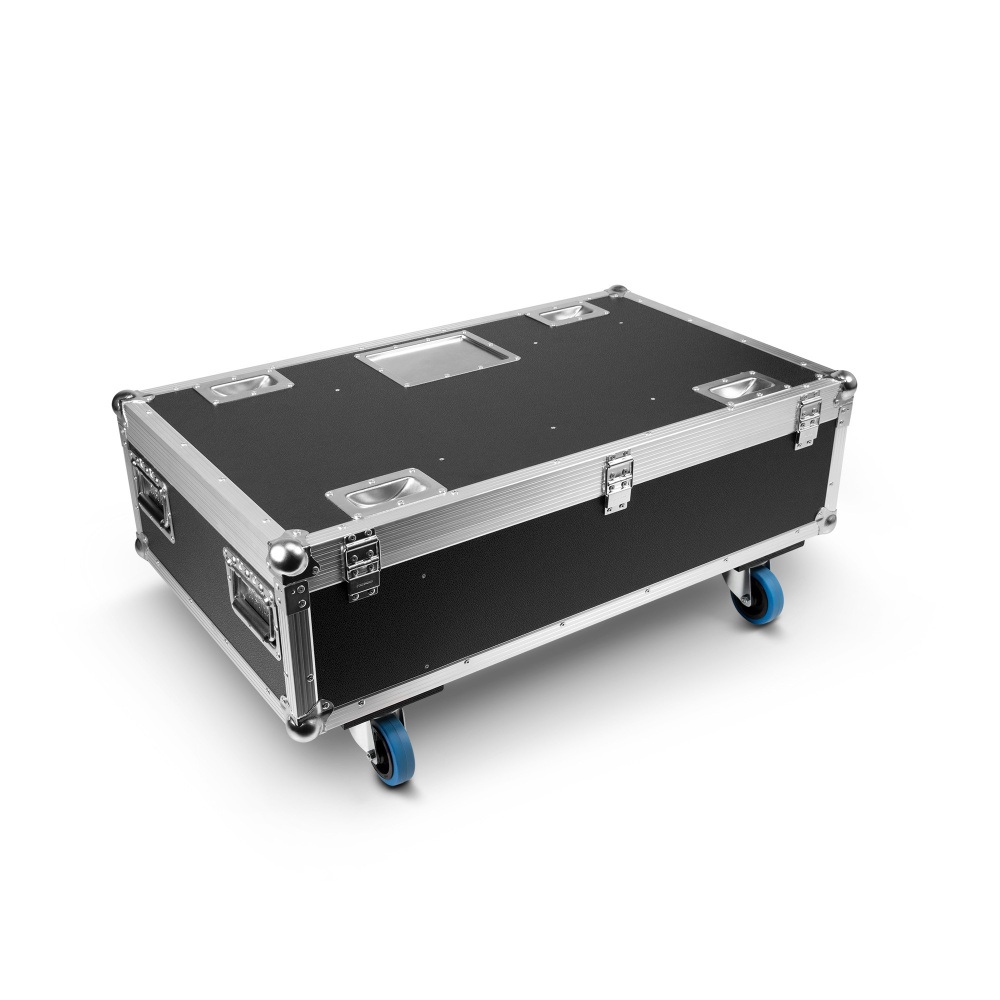

- Robust case (Made in Germany) for 6x DROP® B4

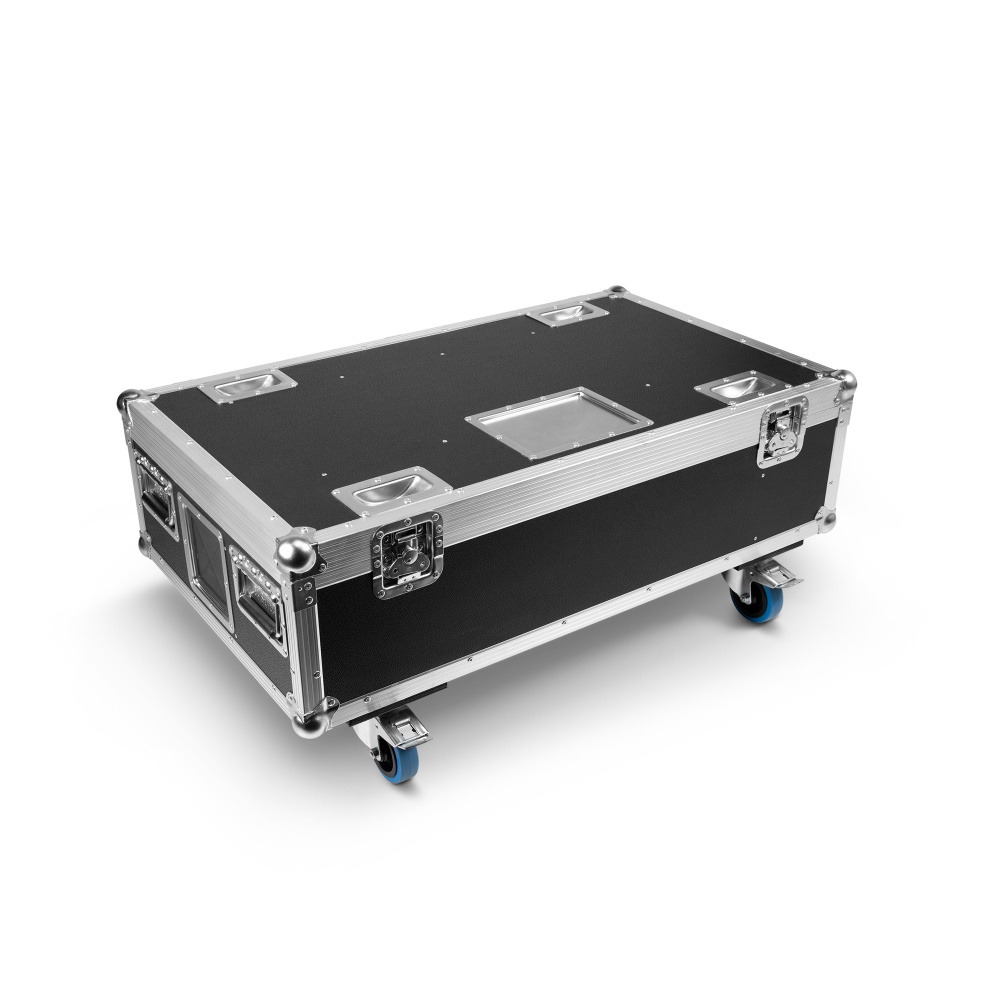

- Stacking recesses in the lid

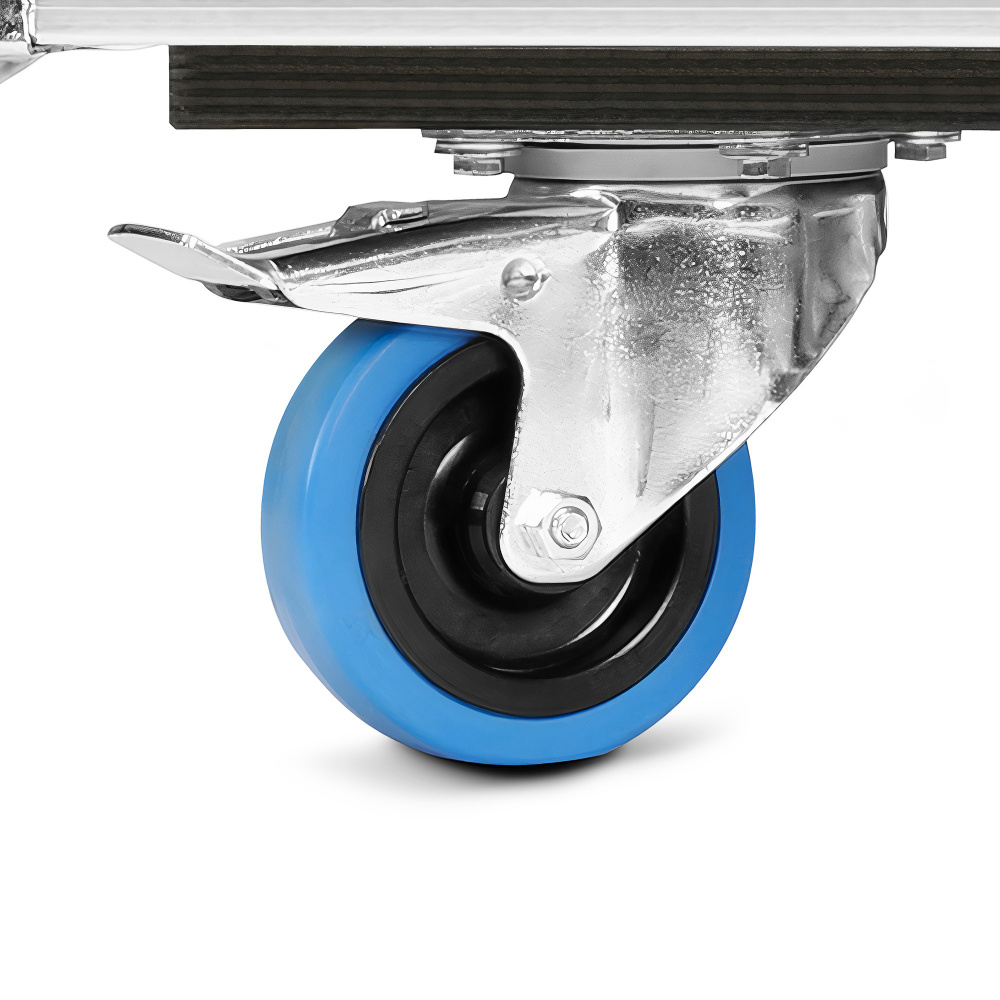

- 4 swivel castors with 100 mm wheels, 2 with locking brakes

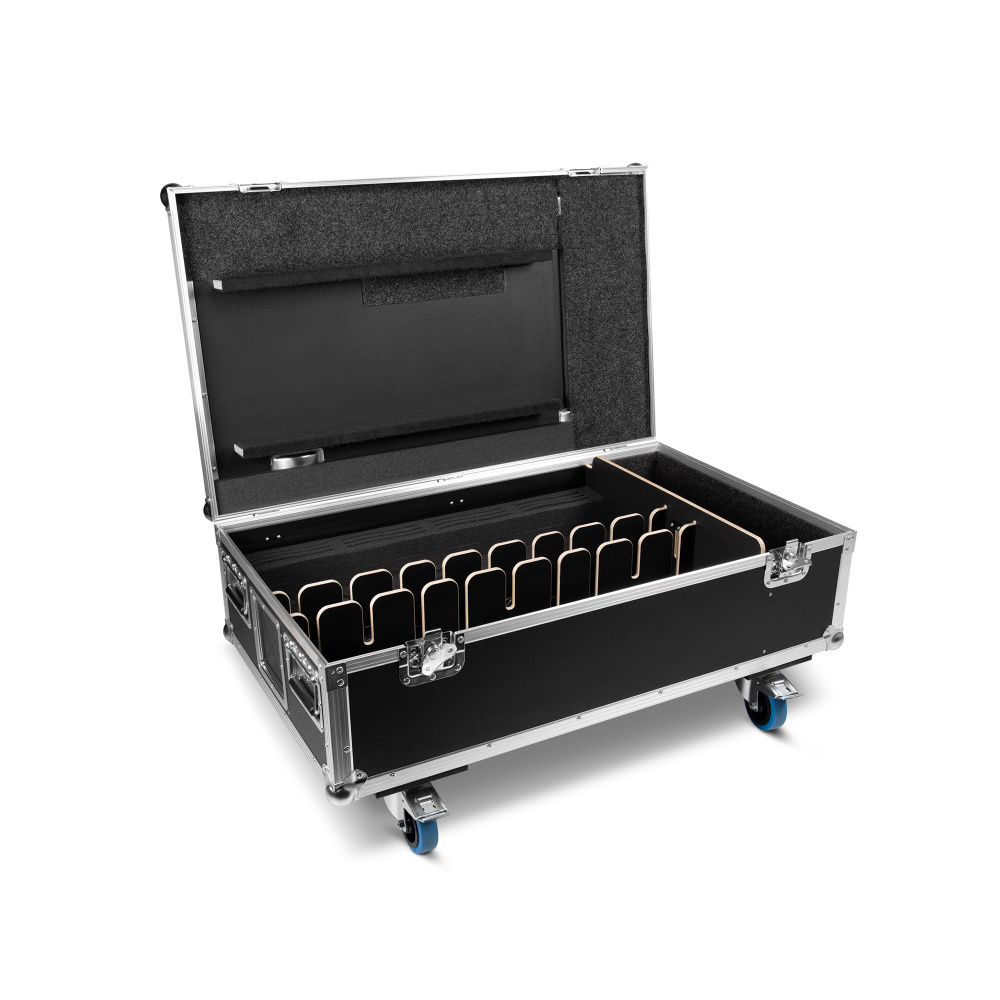

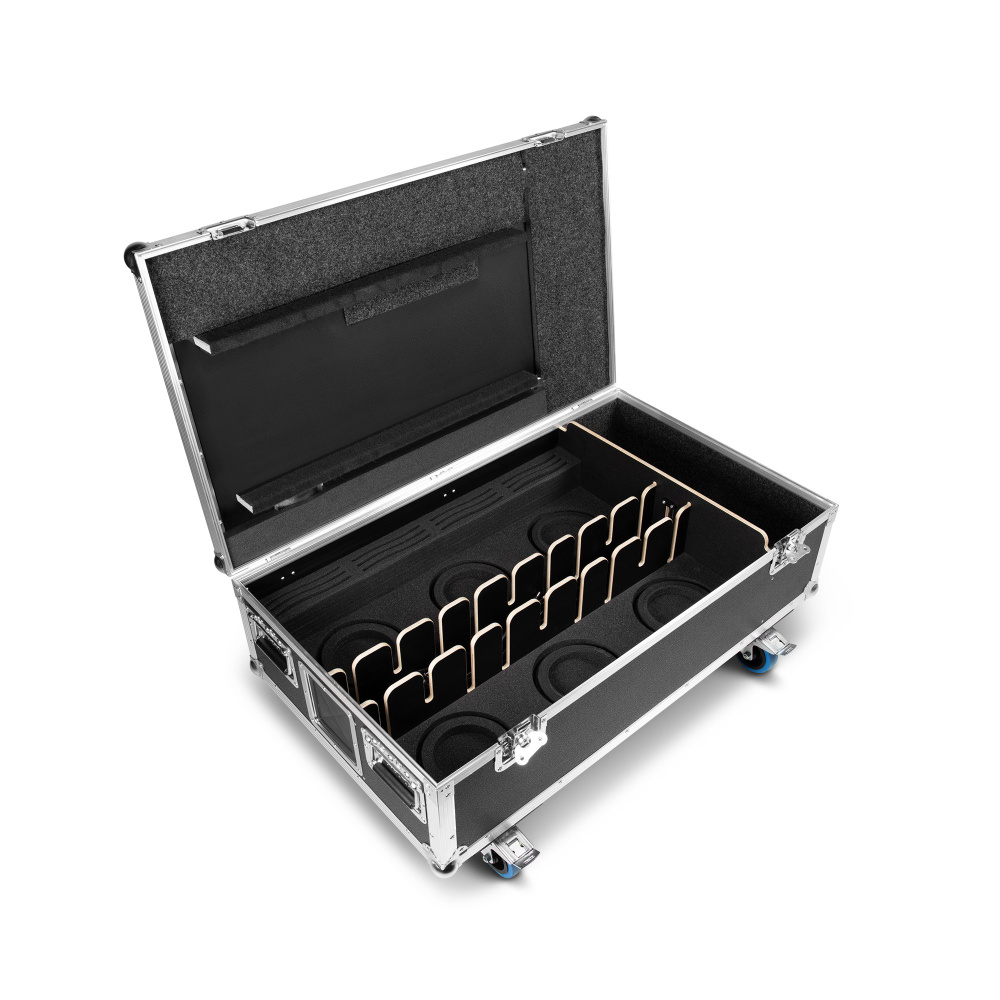

- 2 extra compartments for accessories

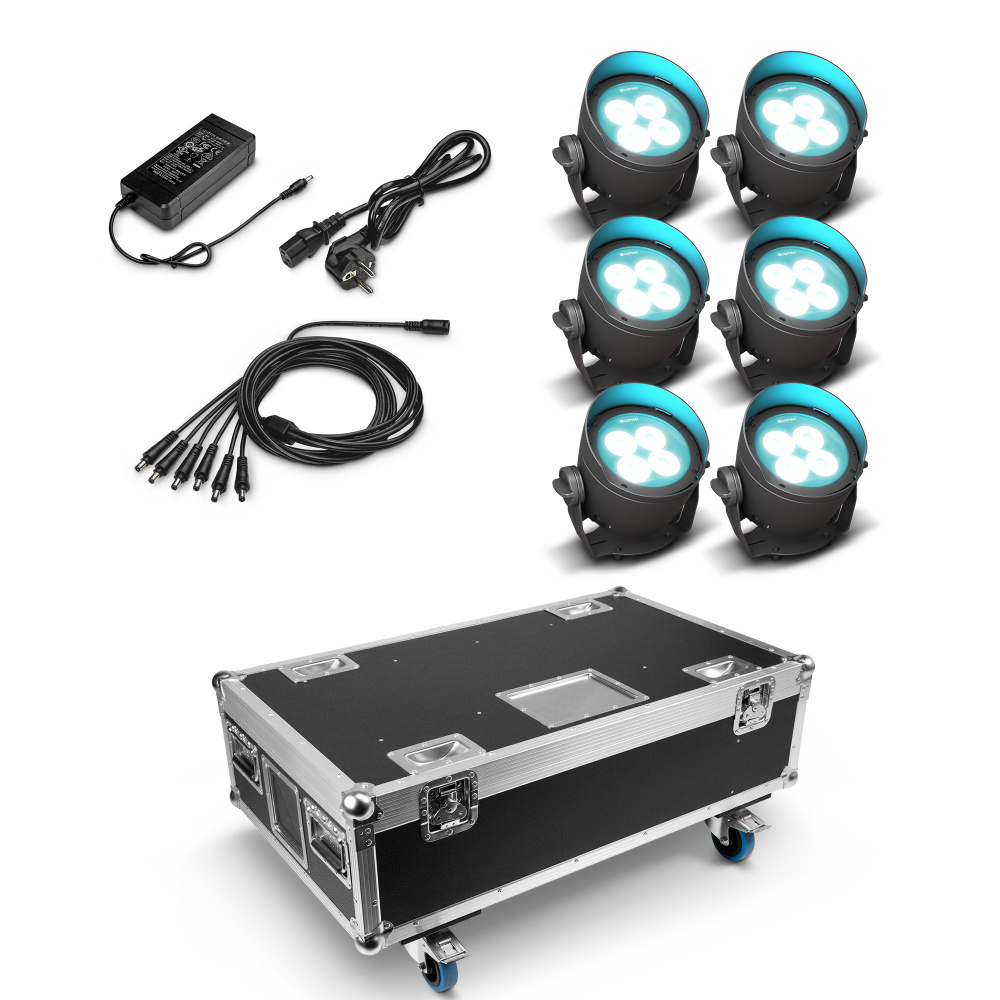

- Power supply + sixfold split cable for directly charging up to 6 Cameo DROP® B4 in the case
- 4 x 15 W RGBWA-UV LEDs (each)
- Up to 12 hours running time in Eco mode
- Built-in 2.4 GHz W-DMX™ receiver
- Diffusers for flexible beam cone: 22°, 32° or 45°
- IR remote control included (art. no. CLQSREMOTE2)
Specifications
Product type
LED PAR Lighting Accessories
Type
Transport Boxes
Material
Birch multiplex
Material thickness
7 mm
Color
Black

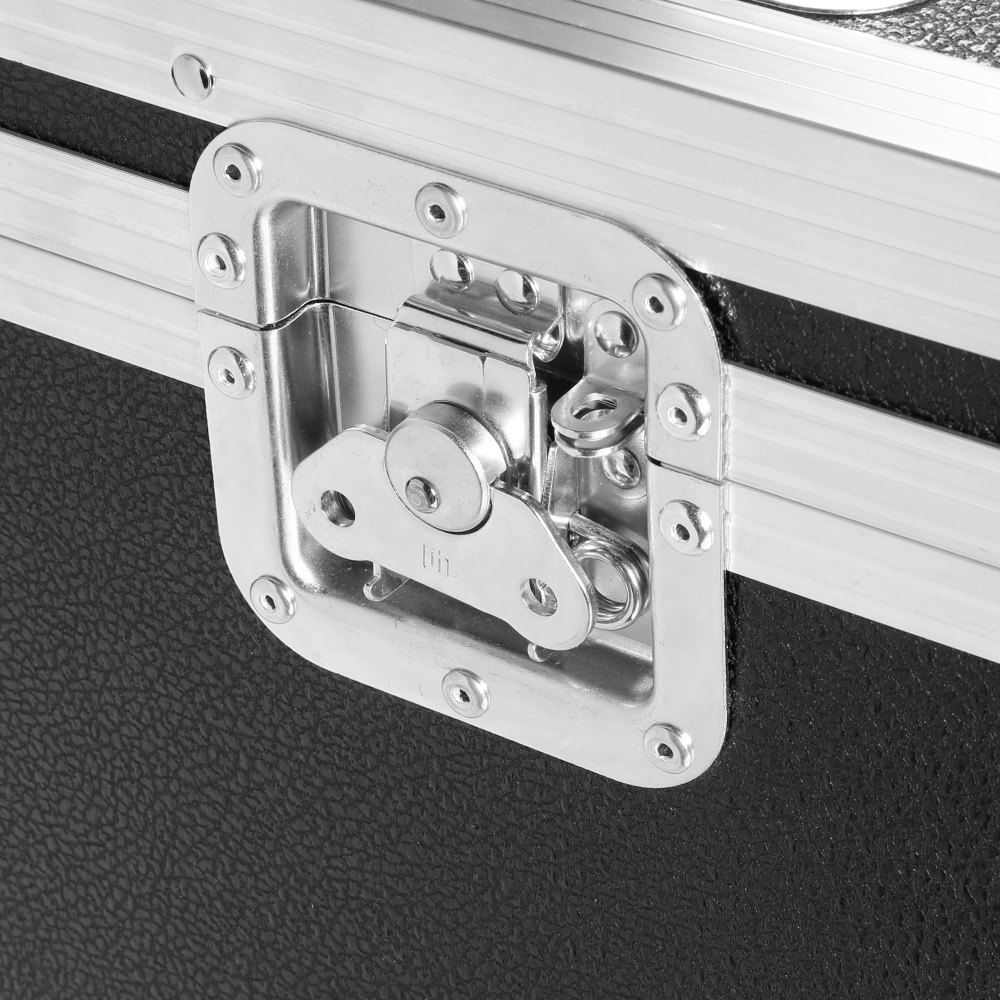

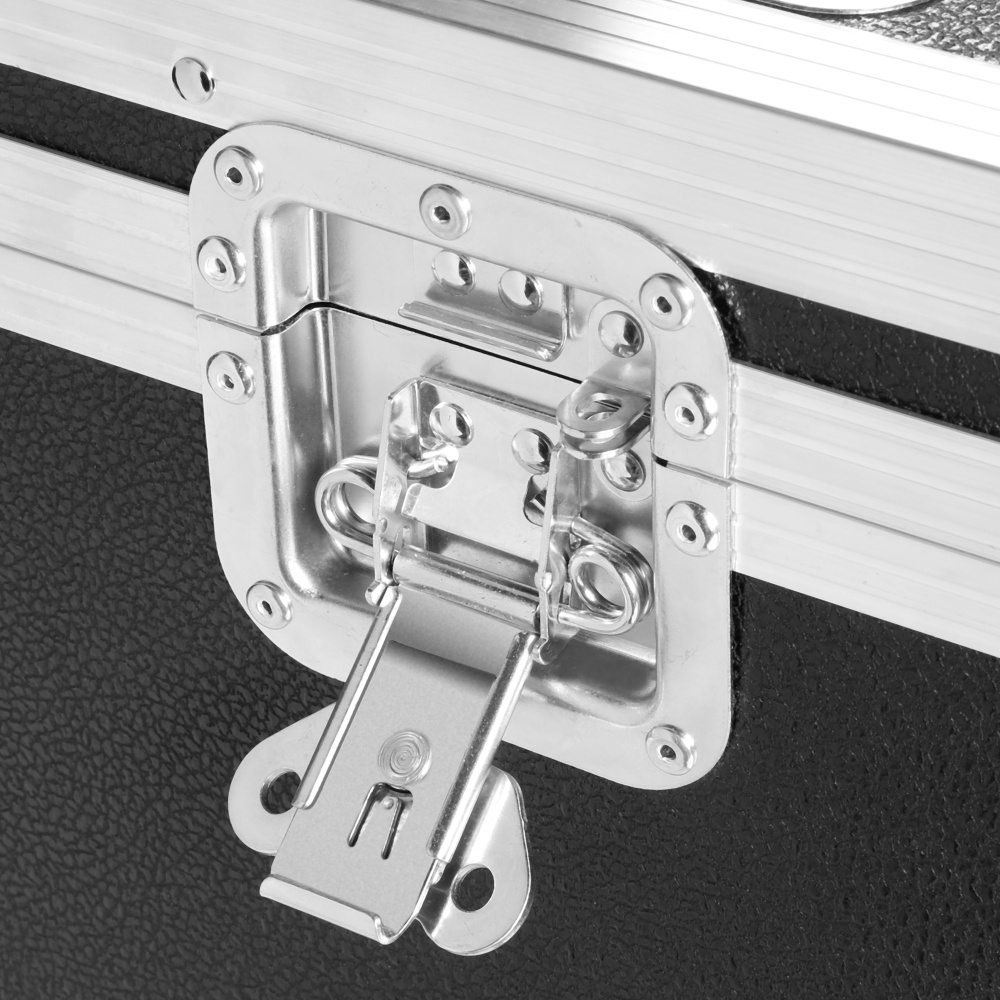

Latch
Butterfly Latches
Interior construction
foam
Weight
45 kg
Items in this set
Product type
Battery powered LED outdoor lighting
Type
Outdoor PAR, PAR, battery-powered
Colour spectrum
RGBWA + UV
Number of LEDs
4
Average LED lifetime
30000 hours
Dispersion
(Filter 2) 45 °, 22 °, (Filter 1) 32 °
DMX mode
3-channel, 20-channel, 2 x 13-channel, 6-channel, 4-channel, 7-channel
DMX Functions
RGBWA + UV, Dimmer Fine, DMX Delay, colour change, Dimmer Response, colour macro, CCT, Dimmer, Dimmer Curve, Strobe, colour fade
Standalone modes
Colour Mix, Tunable White, colour macro, Strobe, User Colours, Auto programs
Control
W-DMX, IR Remote Control
Controls
Down, Mode, Enter, Up
Indicators
OLED Display
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
75 W
Power supply connector
External Power Supply
Housing material
Metal
Cabinet colour
Black
Protection class IP
IP65
Cooling
Convection
Illuminance
6750 lx @ 1 m
Luminous flux
1400 lm
Maximum Ambient Temperature
0 - 40 °C
Certification
RoHS, ETL, FCC, CE
Relative Humidity
< 85 %, not condensing
Width
247.9 mm
Height
236.8 mm
Accessories (included)
IR Remote Control, 1 x Mounting bracket, 2 x filter
Diameter
171.7 mm
Weight
3,1 kg
Product type
Other Lighting Accessories
Type
Power cord
Color
Black
Material
ABS plastic
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption (max.)
450 W
Width
168.20 mm
Height
39.4 mm
Depth
65.6 mm
Housing Cooling
Convection
Ambient temperature (operating)
0 - 40 °C
Relative Humidity
< 85 %, not condensing
Certification
RoHS, CE, FCC, ETL
Weight
0,886 kg
